Product Summary
The TS5A23157DGSRG4 is a dual single-pole double-throw (SPDT) analog switch designed to operate from 1.65 V to 5.5 V. This device can handle both digital and analog signals. Signals up to 5.5 V (peak) can be transmitted in either direction. Applications include Sample-and-Hold Circuits, Battery-Powered Equipment, Audio and Video Signal Routing and Communication Circuits.
Parametrics
TS5A23157DGSRG4 absolute maximum ratings: (1)Supply voltage range: -0.5 to 6.5 V; (2)Analog voltage range: -0.5 to V+ + 0.5 V; (3)Digital input voltage range: -0.5V to 6.5 V; (4)Digital input clamp current: -50 mA; (5)Continuous current through V+ or GND:±100 mA; (6)Storage temperature range: -65 to 150℃.
Features
TS5A23157DGSRG4 features: (1)Specified Break-Before-Make Switching DGS PACKAGE; (2)Low ON-State Resistance (10Ω) (TOP VIEW); (3)Control Inputs Are 5-V Tolerant; (4)Low Charge Injection; (5)Excellent ON-Resistance Matching; (6)Low Total Harmonic Distortion; (7)1.8-V to 5.5-V Single-Supply Operation

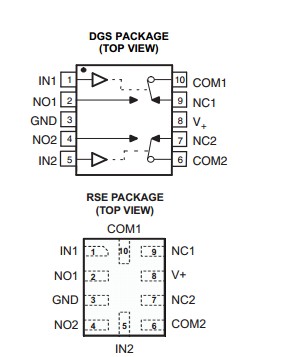

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TS5A23157DGSRG4 |
Texas Instruments |
Analog Switch ICs Dual 10-Ohm SPDT Analog Switch |
Data Sheet |
|
|
||||||||||||
