Product Summary

The TLC2264CN is an advanced lincmos rail-to-rail operational amplifier. The TLC2264CN is a dual and quadruple operational amplifier from Texas Instruments. The TLC2264CN exhibits rail-to-rail output performance for increased dynamic range in single- or split-supply applications.The TLC2264CN, exhibiting high input impedance and low noise, is excellent for small-signal conditioning for high-impedance sources, such as piezoelectric transducers.

Parametrics

TLC2264CN absolute maximum ratings: (1)Supply voltage, VDD+ (see Note 1): 8 V; (2)Supply voltage, VDD– (see Note 1): –8 V; (3)Differential input voltage, VID : ±16 V; (4)Input voltage, VI: VDD– – 03 V to VDD+; (5)Input current, II (each input): ±5 mA; (6)Output current, IO: ±50 mA; (7)Total current into VDD+: ±50 mA; (8)Total current out of VDD– : ±50 mA; (9)Duration of short-circuit current at (or below) 25°C : unlimited.

Features

TLC2264CN features: (1)Output Swing includes Both Supply Rails; (2)Low Noise 12 nV/√Hz Typ at f = 1 kHz; (3)Low Input Bias Current 1 pA Typ; (4)Fully Specified for Both Single-Supply and; (5)Split-Supply Operation; (6)Low Power 500 μA Max; (7)Common-Mode Input Voltage Range; (8)Includes Negative Rail.

Diagrams

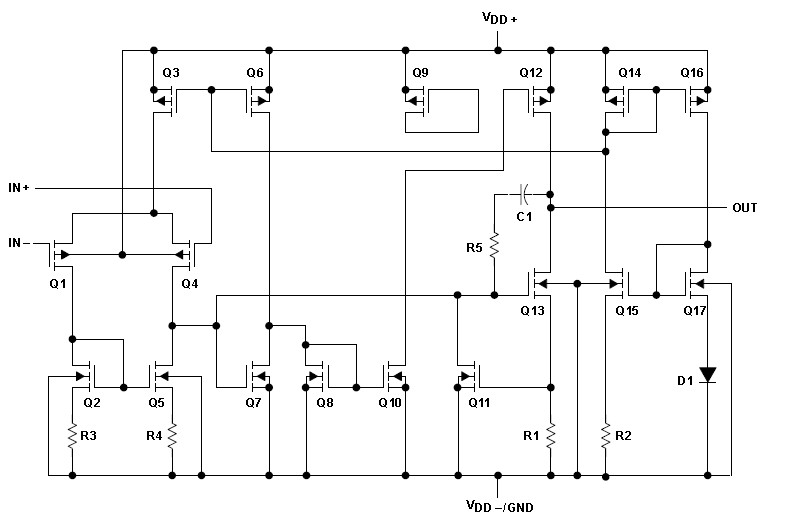

TLC2264CN pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TLC2264CN
TLC2264CN
Texas Instruments
Operational Amplifiers - Op Amps Quad Rail-Rail
Data Sheet
0-1: $1.16
1-25: $1.06
25-100: $0.83
100-250: $0.79
TLC2264CNE4
TLC2264CNE4
Texas Instruments
Operational Amplifiers - Op Amps Quad Adv LinCMOS Rail-to-Rail
Data Sheet
0-1: $1.19
1-25: $0.96
25-100: $0.87
100-250: $0.79
