TDA8541T

TDA8541T, one channel audio power amplifier, 18 V, 1 A, 1.2 W, SOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10000 :	1.00 / Piece

PartNumber:: TDA8541T

Brand:: NXP - NXP | Pack: SOP | D/C: 11+

Availability:: Supply Ability: 4/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Sukey's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-12

From Other Seller

Part Number:TDA8541T
US $1.00 - 1.00
Quantity:

piece

Product Summary

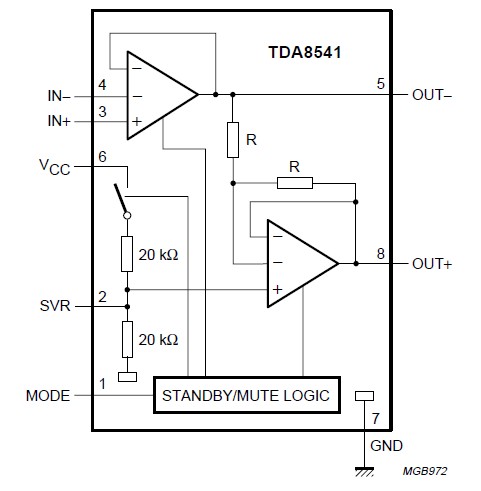

The TDA8541T is an one channel audio power amplifier for an output power of 1 W with an 8 W load at a 5 V supply. The TDA8541T contains a BTL amplifier with a complementary PNP-NPN output stage and standby/mute logic. The TDA8541T comes in an 8 pin SO package and the TDA8541 in an 8 pin DIP package. Applications are (1)Portable consumer products; (2)Personal computers; (3)Telephony.

Parametrics

TDA8541T absolute maximum ratings: (1)VCC supply voltage operating: -0.3 to +18 V; (2)VI input voltage: -0.3 to VCC + 0.3 V; (3)IORM repetitive peak output current: 1 A; (4)Tstg storage temperature non-operating: -55 to +150 °C; (5)Tamb operating ambient temperature: -40 to +85 °C; (6)Vpsc AC and DC short-circuit safe voltage: 10 V; (7)Ptot total power dissipation: SO8 0.8 W, DIP8 1.2 W.

Features

TDA8541T features: (1)Flexibility in use; (2)Few external components; (3)Low saturation voltage of output stage; (4)Gain can be fixed with external resistors; (5)Standby mode controlled by CMOS compatible levels; (6)Low standby current; (7)No switch-on/switch-off plops; (8)High supply voltage ripple rejection; (9)Protected against electrostatic discharge; (10)Outputs short-circuit safe to ground, VCC and across the load; (11)Thermally protected.
