TD62308AF

TD62308AF, non-inverting transistor array, 10 V, 1.5 A, 2.7 W, DIP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.90~0.90 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1826 :	0.90 / Piece

PartNumber:: TD62308AF

Brand:: Toshiba Semiconductor - Toshiba | Pack: | D/C: 04+

Availability:: Supply Ability: 3/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Sukey's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-21

From Other Seller

Part Number:TD62308AF
US $0.90 - 0.90
Quantity:

piece

Product Summary

The TD62308AF is a non-inverting transistor array which is comprised of four NPN darlington output stages and PNP input stages. The TD62308AF is low-level input active driver and is suitable for operation with 5-V TTL, 5-V CMOS and 5-V Microprocessor which have sink current output drivers. Applications are relay, hammer, lamp and stepping motor drivers.

Parametrics

TD62308AF absolute maximum ratings: (1)Supply voltage VCC: -0.5 to 10 V; (2)Output sustaining voltage VCE (SUS): -0.5 to 50 V; (3)Output current IOUT: 1.5 A/ch; (4)Input current IIN: -10 mA; (5)Input voltage VIN: -0.5 to 30 V; (6)Clamp diode reverse voltage VR: 50 V; (7)Clamp diode forward current IF: 1.5 A; (8)Power dissipation: 1.47/2.7 W; (9)Operating temperature Topr: -40 to 85 °C; (10)Storage temperature Tstg: -55 to 150 °C.

Features

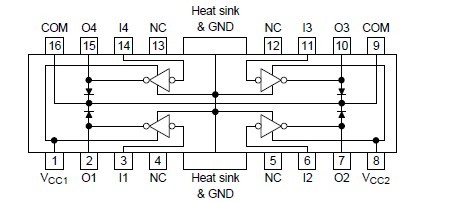

TD62308AF features: (1)Output current (single output): 1.5 A (max); (2)High sustaining voltage output: 50 V (min); (3)Output clamp diodes; (4)Input compatible with TTL and 5 V CMOS; (5)Low level active inputs; (6)Standard supply voltage; (7)Two VCC terminals VCC1, VCC2 (separated); (8)GND and SUB terminal = Heat sink; (9)Package type-APG: DIP-16 pin; (10)Package type-AFG: HSOP-16 pin.
