Product Summary
The TC74HC4075AP is a high speed CMOS 3-INPUT OR GATE fabricated with silicon gate C2MOS technology. The TC74HC4075AP achieves the high speed operation similar to equivalent LSTTL while maintaining the CMOS low power dissipation. The TC74HC4075AP is composed of 4 stages including a buffered outputs, which provide high noise immunity and stable output.
Parametrics
TC74HC4075AP absolute maximum ratings: (1)Supply voltage range VCC: -0.5 to 7 V; (2)DC input voltage VIN: -0.5 to VCC + 0.5 V; (3)DC output voltage VOUT: -0.5 to VCC + 0.5 V; (4)Input diode current IIK: ±20 mA; (5)Output diode current IOK: ±20 mA; (6)DC output current IOUT: ±25 mA; (7)DC VCC/ground current ICC: ±50 mA; (8)Power dissipation PD: 500 (DIP)(Note 2)/180 (SOP)mW; (9)Storage temperature Tstg: -65 to 150 °C.
Features
TC74HC4075AP features: (1)High speed: tpd = 8 ns (typ.)at VCC = 5 V; (2)Low power dissipation: ICC = 2 μA (max)at Ta = 25°C; (3)High noise immunity: VNIH = VNIL = 28% VCC (min); (4)Output drive capability: 10 LSTTL loads; (5)Symmetrical output impedance: |IOH| = IOL = 4 mA (min); (6)Balanced propagation delays: tpLH -tpHL; (7)Wide operating voltage range: VCC (opr)= 2 to 6 V; (8)Pin and function compatible with 4075B.

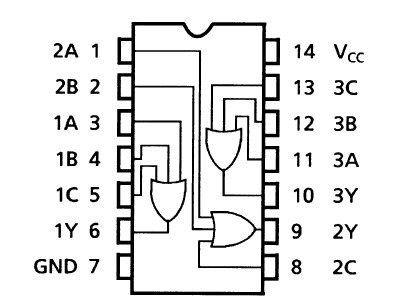

Diagrams
