Product Summary
The TC74ACT139FS is an advanced high speed CMOS 2-4 line decoder fabricated with silicon gate C2MOS technology.It achieves the high speed operation similar to equivalent bipolar schottky TTL while maintaining the CMOS low power dissipation.All inputs are equipped with protection circuits against static discharge or transient excess voltage.
Parametrics
TC74ACT139FS absolute maximum ratings: (1)supply voltage range: -0.5~7.0V; (2)DC input voltage: -0.5~VCC+0.5V; (3)DC output voltage: -0.5~VCC+0.5V; (4)input diode current: ±20mA; (5)output diode current: ±20mA;(6)storage temperature: -65 to 150℃.
Features
TC74ACT139FS features: (1)high speed; (2)low power dissipation; (3)symmetrical output impedance; (4)balanced propagation delays.

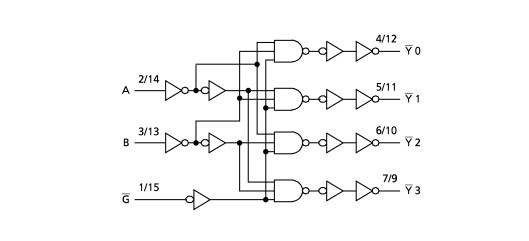

Diagrams
