Product Summary
The TC74AC373F is an advanced high speed CMOS OCTAL LATCH with 3-STATE OUTPUT fabricated with silicon gate and double-layer metal wiring C2MOS technology. The TC74AC373F achieves the high speed operation similar to equivalent Bipolar Schottky TTL while maintaining the CMOS low power dissipation. These 8-bit D-type latches are controlled by a latch enable input (LE) and a output enable input (OE ).
Parametrics
TC74AC373F absolute maximum ratings: (1)Supply voltage range VCC: -0.5 to 7.0 V; (2)DC input voltage VIN: -0.5 to VCC + 0.5 V; (3)DC output voltage VOUT: -0.5 to VCC + 0.5 V; (4)Input diode current IIK: ±20 mA; (5)Output diode current IOK: ±50 mA; (6)DC output current IOUT: ±50 mA; (7)DC VCC/ground current ICC: ±200 mA; (8)Power dissipation PD: 500 (DIP)(Note 2)/180 (SOP/TSSOP)mW; (9)Storage temperature Tstg: -65 to 150 °C.
Features
TC74AC373F features: (1)High speed: tpd = 4.8 ns (typ.)at VCC = 5 V; (2)Low power dissipation: ICC = 8 μA (max)at Ta = 25°C; (3)High noise immunity: VNIH = VNIL = 28% VCC (min); (4)Symmetrical output impedance: |IOH| = IOL = 24 mA (min)Capability of driving 50 Ω transmission lines; (5)Balanced propagation delays: tpLH -tpHL; (6)Wide operating voltage range: VCC (opr)= 2 to 5.5 V; (7)Pin and function compatible with 74F373.

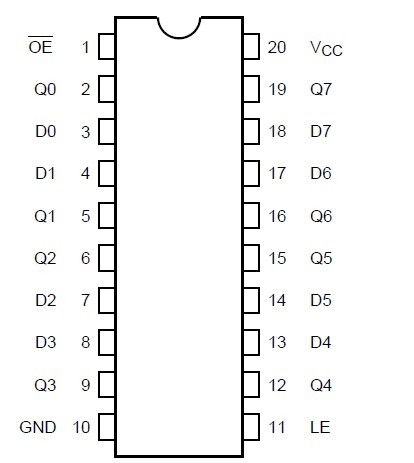

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TC74AC373FW |
|
IC LATCH OCT D-TYPE 3-ST 20-SOL |
Data Sheet |
Negotiable |
|
||||||
|
TC74AC373FW(F) |
|
IC LATCH OCT D-TYPE 3-ST 20-SOL |
Data Sheet |
|
|
||||||
