Product Summary
The TC4027BP is a J-K master-slave flip-flop having RESET and SET functions. In the case of J-K made, when the clock input is given with both RESET and SET at L, the output changes at rising edge of the clock according to the states of J and K. When SET input is placed at H, and RESET input is placed at L, outputs become Q = H, and Q = L. When RESET input of TC4027BP is placed at H, and SET input is placed at L, outputs become Q = L, and Q = H. When both of RESET input and SET input are at H, outputs become Q = H and Q = H.
Parametrics
TC4027BP absolute maximum ratings: (1)DC supply voltage: VSS - 0.5～VSS + 20 V; (2)Input voltage: VSS - 0.5～VDD + 0.5 V; (3)Output voltage: VSS - 0.5～VDD + 0.5 V; (4)DC input current: ±10 mA ; (5)Power dissipation: 300 (DIP)/180 (SOIC) mW; (6)Operating temperature range: -40～85 ℃; (7)Storage temperature range: -65～150 ℃.
Features
TC4027BP electrical characteristics: (1)high-level output voltage: 4.95 V min; (2)low-level output voltage: 0.05 V max; (3)output high current: -0.61 mA min at VOH=4.6 V; (4)output low current: 0.61 mA min at VOL=0.4 V; (5)input high voltage: 3.5V min at VOUT=0.5V, 4.5V; (6)input low voltage: 1.5V max at VOUT=0.5V.

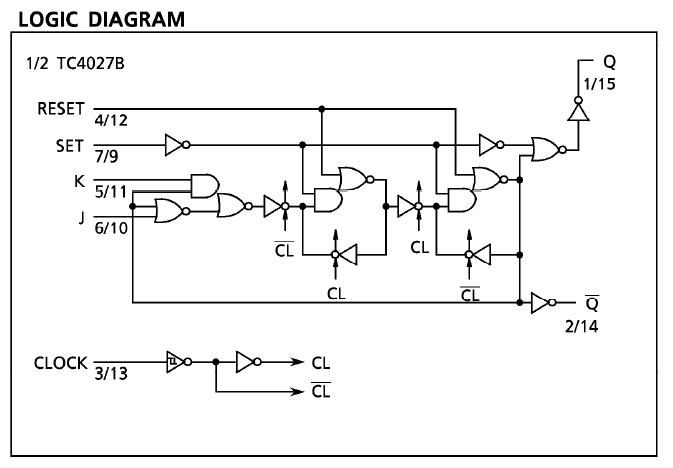

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TC4027BP |
Other |
|
Data Sheet |
Negotiable |
|
||||||
