Product Summary
The T8502EL2 is a single-chip, twochannel, m-law/A-law PCM codec with filter. The T8502EL2 provides analog-to-digital and digital-to-analog conversion. The T8502EL2 provides the transmit and receive filtering necessary to interface a voice telephone circuit to a time-division multiplexed system. The T8502EL2 is packaged in both 20-pin SOJs and 20-pin SOGs.
Parametrics
T8502EL2 absolute maximum ratings: (1)Storage Temperature Range Tstg: –55 to 150 °C; (2)Power Supply Voltage VDD: 6.5 V; (3)Voltage on Any Pin with Respect to Ground: –0.5 to 0.5 + VDD V; (4)Maximum Power Dissipation (package limit)PD: 600 mW; (5)Input Current, Pins 9, 12 II GNDD < VIN < VDD: –10 to 10 mA; (6)Input Capacitance CI: 5 pF.
Features
T8502EL2 features: (1)Two independent channels; (2)Pin-selectable receive gaicontrol; (3)Pin-selectable m-law or A-law companding; (4)Automatic powerdowmode; (5)Low-power, latch-up-free CMOS technology; (6)Independent transmit and receive frame strobes; (7)2.048 MHz or 4.096 MHz data rate; (8)On-chip sample and hold, autozero, and precisiovoltage reference; (9)Differential architecture for high noise immunity and power supply rejection.

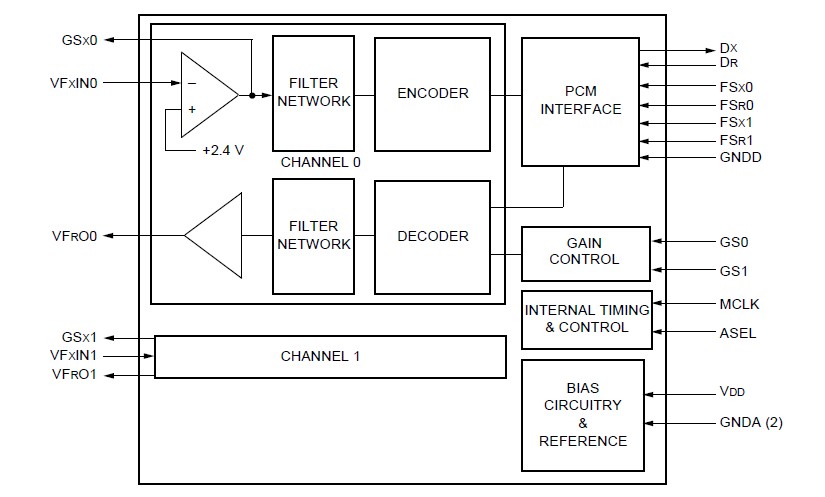

Diagrams
