Product Summary

The SN74LVC2G32DCUR is a dual 2 input positive—or gate. The SN74LVC2G32DCUR is fully specified for partial—power—down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.

Parametrics

SN74LVC2G32DCUR absolute maximum ratings: (1)Supply voltage range, VCC: —0.5 V to 6.5 V; (2)Input voltage range, VI (see Note 1): —0.5 V to 6.5 V; (3)Voltage range applied to any output in the high-impedance or power-off state, VO (see Note 1): —0.5 V to 6.5 V; (4)Voltage range applied to any output in the high or low state, VO (see Notes 1 and 2): —0.5 V to VCC + 0.5 V; (5)Input clamp current, IIK (VI < 0): —50 mA; (6)Output clamp current, IOK (VO < 0): —50 mA; (7)Continuous output current, IO: ±50 mA; (8)Continuous current through VCC or GND: ±100 mA; (9)Package thermal impedance, θJA (see Note 3): DCT package: 220°C/W.

Features

SN74LVC2G32DCUR features: (1)Supports 5-V VCC Operation; (2)Inputs Accept Voltages to 5.5 V; (3)Max tpd of 3.8 ns at 3.3 V; (4)Low Power Consumption, 10-μA Max ICC; (5)±24-mA Output Drive at 3.3 V; (6)Typical VOLP (Output Ground Bounce)<0.8 V at VCC = 3.3 V, TA = 25°C; (7)Typical VOHV (Output VOH Undershoot)>2 V at VCC = 3.3 V, TA = 25°C; (8)Ioff Supports Partial-Power-Down Mode Operation; (9)Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II.

Diagrams

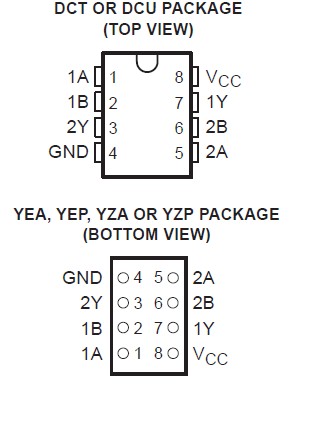

SN74LVC2G32DCUR pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
SN74LVC2G32DCUR
SN74LVC2G32DCUR
Texas Instruments
Gates (AND / NAND / OR / NOR) Dual 2-Input Pos
Data Sheet
0-1: $0.29
1-25: $0.20
25-100: $0.17
100-250: $0.15
SN74LVC2G32DCURE4
SN74LVC2G32DCURE4

IC POS-OR GATE DUAL 2IN 8-US8
Data Sheet
0-3000: $0.15
SN74LVC2G32DCURG4
SN74LVC2G32DCURG4

IC POS-OR GATE DUAL 2IN 8-US8
Data Sheet
0-3000: $0.15
