Product Summary

The SM6T6V8A is a Transil diode. It provides high overvoltage protection by clamping action. The SM6T6V8A is particularly suited to protect voltage sensitive devices.

Parametrics

SM6T6V8A absolute maximum ratings: (1)PPP, Peak pulse power dissipation, Tj initial = Tamb: 600 W; (2)P, Power dissipation on infinite heatsink, Tamb = 50℃: 5 W; (3)IFSM, Non repetitive surge peak forward current for unidirectional types, tp = 10ms, Tj initial = Tamb: 100 A; (4)Tstg: Storage temperature range: - 65 to + 175℃; (5)Tj, Maximum junction temperature: 150 ℃; (6)TL, Maximum lead temperature for soldering during 10 s: 260 ℃.

Features

SM6T6V8A features: (1)peak pulse power: 600W (10/1000ms); (2)breakdown voltage range: from 6.8V to 220V; (3)uni and bidirectional types; (4)low clamping factor; (5)fast response time; (6)UL recognized.

Diagrams

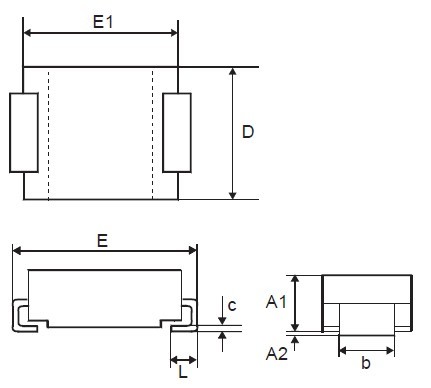

SM6T6V8A pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
SM6T6V8A
SM6T6V8A

STMicroelectronics

TVS Diodes - Transient Voltage Suppressors 600W 6.8V Unidirect

Data Sheet

0-1: $0.16
1-10: $0.14
10-100: $0.12
100-250: $0.10
SM6T6V8A/1
SM6T6V8A/1

Vishay Semiconductors

TVS Diodes - Transient Voltage Suppressors 600W 6.8V 5% Unidir

Data Sheet

Negotiable
SM6T6V8A/2
SM6T6V8A/2

Vishay Semiconductors

TVS Diodes - Transient Voltage Suppressors 600W 6.8V 5% Uni

Data Sheet

Negotiable
SM6T6V8A/5
SM6T6V8A/5

Vishay Semiconductors

TVS Diodes - Transient Voltage Suppressors 600W 6.8V 5% Uni

Data Sheet

Negotiable
SM6T6V8A/55
SM6T6V8A/55

Vishay Semiconductors

TVS Diodes - Transient Voltage Suppressors 600W 6.8V 5% Uni

Data Sheet

Negotiable
SM6T6V8A/52
SM6T6V8A/52

Vishay Semiconductors

TVS Diodes - Transient Voltage Suppressors 600W 6.8V 5% Uni

Data Sheet

Negotiable
SM6T6V8A-E3/52
SM6T6V8A-E3/52

Vishay Semiconductors

TVS Diodes - Transient Voltage Suppressors 600W 6.8V 5% Uni

Data Sheet

0-1: $0.29
1-10: $0.23
10-50: $0.16
50-100: $0.13
SM6T6V8AHE3/52
SM6T6V8AHE3/52

Vishay Semiconductors

TVS Diodes - Transient Voltage Suppressors 600W 6.8V 5% Unidir

Data Sheet

0-1: $0.33
1-10: $0.31
10-50: $0.29
50-100: $0.27
100-750: $0.24
