Product Summary
The MSP430F5418IPNR is a mixed signal microcontroller. The MSP430F5418IPNR ultralow-power microcontroller consists of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low-power modes is optimized to achieve extended battery life in portable measurement applications. The MSP430F5418IPNR features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency.
Parametrics
MSP430F5418IPNR absolute maximum ratings: (1)Voltage applied at VCC to VSS: –0.3 V to 4.1 V; (2)Voltage applied to any pin (excluding VCORE): –0.3 V to VCC + 0.3 V; (3)Diode current at any device pin: ±2 mA; (4)Unprogrammed device: –55℃ to 150℃; (5)Storage temperature range, Tstg Programmed device: –40℃ to 105℃.
Features
MSP430F5418IPNR features: (1)Low Supply-Voltage Range; (2)Ultralow Power Consumption; (3)Wake-Up From Standby Mode in Less Than 5 μs; (4)16-Bit RISC Architecture; (5)Flexible Power Management System; (6)Unified Clock System; (7)16-Bit Timer0_A5 With Five Capture/Compare RegistersBasic Timer With Real Time Clock Feature.

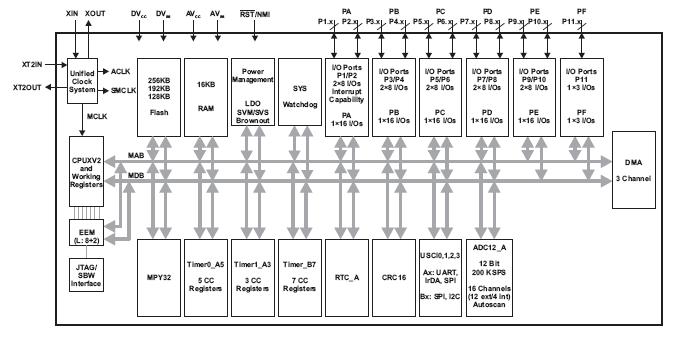

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MSP430F5418IPNR |
Texas Instruments |
16-bit Microcontrollers (MCU) 16Bit Ultra-Low-Pwr Microcontroller |
Data Sheet |
|
|
||||||||||||
