MC74HC273ADWR2G

MC74HC273ADWR2G, D flip-flop, 7.0 V, 25 mA, 500 mW, 1.0 A, SOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.40~0.40 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1000 :	0.40 / Piece

PartNumber:: MC74HC273ADWR2G

Brand:: ON Semiconductor - ON | Pack: SOP | D/C: 08+

Availability:: Supply Ability: 4/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Sukey's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-19

From Other Seller

Part Number:MC74HC273ADWR2G
US $0.40 - 0.40
Quantity:

piece

Product Summary

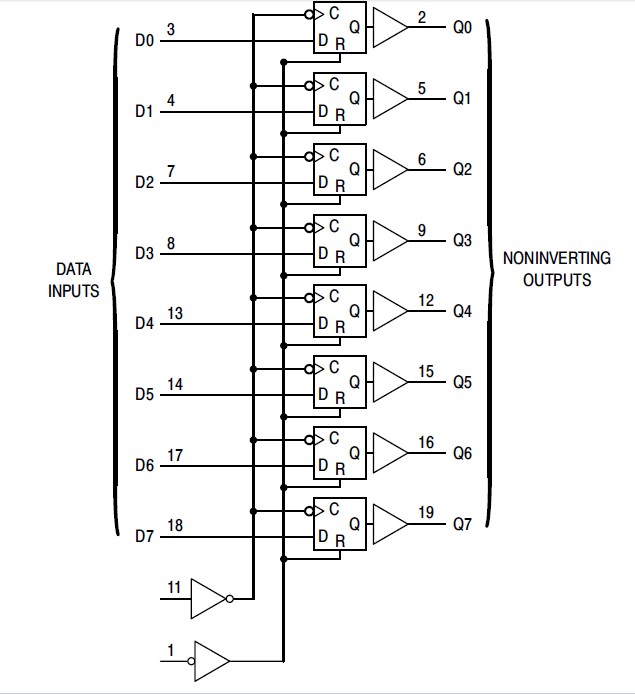

The MC74HC273ADWR2G is an octal D flip-flop with common clock and reset high-performance silicon-gate CMOS. It is identical in pinout to the LS273. The MC74HC273ADWR2G inputs are compatible with standard CMOS outputs; with pullup resistors, they are compatible with LSTTL outputs. The MC74HC273ADWR2G consists of eight D flip-flops with common Clock and Reset inputs. Each flip-flop is loaded with a low-to-high transition of the Clock input. Reset is asynchronous and active low.

Parametrics

MC74HC273ADWR2G absolute maximum ratings: (1)DC Supply Voltage (Referenced to GND): -0.5 to + 7.0 V; (2)DC Input Voltage (Referenced to GND): -0.5 to Vcc + 0.5 V; (3)DC Output Voltage (Referenced to GND): -0.5 to Vcc + 0.5 V; (4)DC Input Current, per Pin: ±20 mA; (5)DC Output Current, per Pin: ±25 mA; (6)DC Supply Current, Vcc and GND Pins: ±50 mA; (7)Power Dissipation in Still Air, Plastic DlP: 750 mW; (8)Power Dissipation in Still Air, SOIC Package: 500 mW; (9)Power Dissipation in Still Air, TSSOP Package: 450 mW; (10)Storage Temperature: -65 to + 150 °C; (11)Lead Temperature, 1 mm from Case for 10 Seconds Plastic DIP, SOIC or TSSOP Package: 260 °C.

Features

MC74HC273ADWR2G features: (1)Output Drive Capability: 10 LSTTL Loads; (2)Outputs Directly Interface to CMOS, NMOS and TTL; (3)Operating Voltage Range: 2.0 to 6.0 V; (4)Low Input Current: 1.0 A; (5)High Noise Immunity Characteristic of CMOS Devices; (6)In Compliance with the Requirements Defined by JEDEC Standard No. 7A; (7)Chip Complexity: 264 FETs or 66 Equivalent Gates; (8)Pb-Free Packages are Available.
