Product Summary
The LT1624CS8 is a Sense Amplifier. The LT1624CS8 simplifies the design of high performance, controlled current battery charging circuits when used in conjunction with a current mode PWM controller IC. The LT1624CS8 regulates average output current independent of input and output voltage variations. Output current can be easily adjusted via a programming voltage applied to the its PROG pin. The applications are : (1)High Current Battery Chargers; (2)High Output Voltage DC/DC Converters; (3)Constant Current Sources; (4)Overcurrent Fault Protectors.
Parametrics
LT1624CS8 absolute maxing ratings: (1)Power Supply Voltage: VCC: -0.3V to 7V; (2)Programming Voltage: PROG, PROG2: -0.3V to VCC + 0.3V (7V Max); IOUT, SENSE, AVG, AVG2, MODE Voltage: -0.3V to VCC + 0.3V (7V Max); (3)Sense Amplifier Input Common Mode: –0.3V to 36V; (4)Operating Ambient Temperature Range, Commercial: 0℃ to 70℃; Industrial: -40℃ to 85℃; (5)Storage Temperature Range: –65℃ to 150v; (6)Lead Temperature (Soldering, 10 sec): 300℃.
Features
LT1624CS8 features: (1)Accurate Output Current Programming; (2)Usable in Charging Applications Up to 32V Output; (3)Programmable Load Current Monitor for End-of-Charging-Cycle Notification (16-Pin Version); (4)Dual Function IC (LT1621) Allows Convenient Integration of Load and Input Current Sensing; (5)Level-Shifted Current Sense Output for Current Mode PWM Controllers; (6)Can be Used for NiCd, NiMH, Lead-Acid and Lithium-Ion Battery Charging; (7)Greater than 96% Efficiency Possible in Charger.

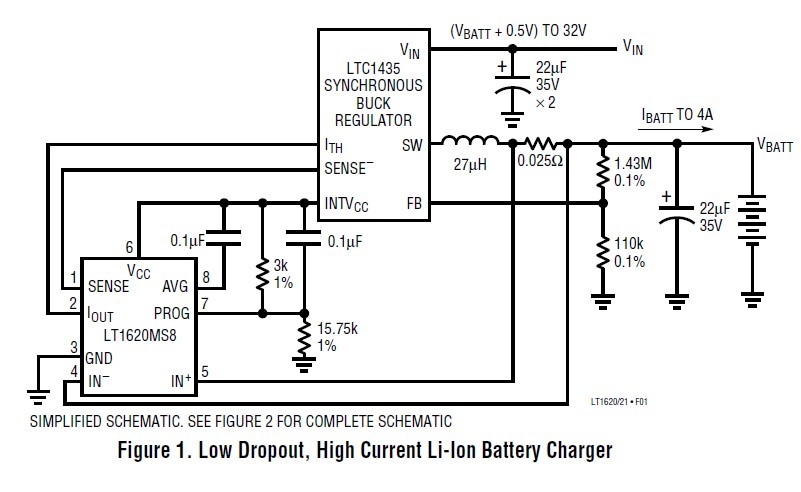

Diagrams
