Product Summary

The LMC6034IMX is a CMOS quad operational amplifier which can operate from either a single supply or dual supplies. Its performance features include an input common-mode range that reaches ground, low input bias current, and high voltage gain into realistic loads, such as 2 kV and 600V;. This chip is built with advanced Double-Poly Silicon-Gate CMOS process.Applications include High-impedance buffer or preamplifier, Current-to-voltage converter, Long-term integrator, Sample-and-hold circuit and Medical instrumentation.

Parametrics

LMC6034IMX absolute maximum ratings: (1)Supply Voltage: 16V; (2)Lead Temperature (Soldering, 10 sec.): 260℃; (3)Storage Temperature Range: -65℃ to +150℃; (4)Voltage at Output/Input Pin: (V+) +0.3V, (V-) -0.3V; (5)Current at Output Pin: ±18 mA; (6)Current at Input Pin: ±5 mA; (7)Current at Power Supply Pin: 35 mA; (8)Junction Temperature: 150℃.

Features

LMC6034IMX features: (1)Specified for 2 kV and 600V loads; (2)High voltage gain: 126 dB; (3)Low offset voltage drift: 2.3 μV/℃; (4)Ultra low input bias current: 40 fA; (5)Input common-mode range includes V-; (6)Operating Range from +5V to +15V supply; (7)ISS = 400 μA/amplifier; independent of V+; (8)Low distortion: 0.01% at 10 kHz; (9)Slew rate: 1.1 V/μs; (10)Improved performance over TLC274.

Diagrams

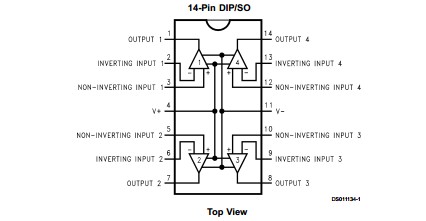

LMC6034IMX connection diagram
