Product Summary
The ICS952101CF is a two chip clock solution for desktop designs using SIS 645/645DX/648/650 style chipsets. When used with a zero delay buffer such as the ICS9179-16 for PC133 or the ICS93735 for DDR applications it provides all the necessary clocks signals for such a system. The ICS952101CF is part of a whole new line of ICS clock generators and buffers called TCH (Timing Control Hub). ICS is the first to introduce a whole product line which offers full programmability and flexibility on a single clock device. Employing the use of a serially programmable I2C interface, the ICS952101CF can adjust the output clocks by configuring the frequency setting, the output divider ratios, selecting the ideal spread percentage, the output skew, the output strength, and enabling/disabling each individual output clock.
Parametrics
ICS952101CF absolute maximum ratings: (1)Core Supply Voltage: 4.6 V; (2)I/O Supply Voltage: 3.6V; (3)Logic Inputs. GND: –0.5 V to VDD +0.5 V; (4)Ambient Operating Temperature: 0°C to +70°C; (5)Storage Temperature: –65°C to +150°C; (6)Case Temperature: 115°C.
Features
ICS952101CF features: (1)Selectable asynchronous/synchronous AGP, ZCLK and PCI outputs; (2)Supports DDR333 OEM frequencies; (3)Programmable output frequency, divider ratios, output rise/falltime, output skew; (4)Programmable spread percentage for EMI control; (5)Watchdog timer technology to reset system if system malfunctions; (6)Programmable watch dog safe frequency; (7)Support I2C Index read/write and block read/write operations; (8)For PC133 SDRAM system use the ICS9179-16 as the memory buffer; (9)For DDR SDRAM system use the ICS93735 or ICS93732 as the memory buffer; (10)Uses external 14.318MHz crystal.

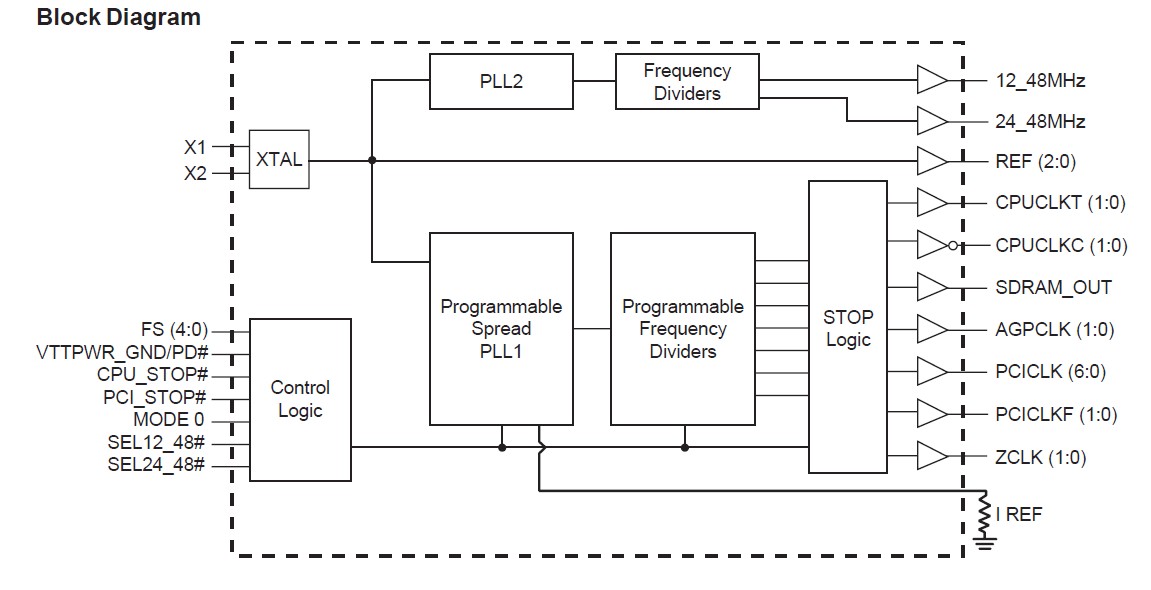

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
ICS952101CF |
IC FREQ GENERATOR 56-SSOP |
Data Sheet |
Negotiable |
|
||||||||
ICS952101CFLF |
IC FREQ GENERATOR 56-SSOP |
Data Sheet |
|
|
||||||||
ICS952101CFLFT |
IC FREQ GENERATOR 56-SSOP |
Data Sheet |
|
|
||||||||
ICS952101CFT |
IC FREQ GENERATOR 56-SSOP |
Data Sheet |
Negotiable |
|
