Product Summary

The HIP4020IB is a half amp full bridge power driver, the four switches and a load are arranged in an H-Configuration so that the HIP4020IB voltage from terminals OUTA and OUTB can be cross-switched to change the direction of current flow in the load.applications are (1)DC Motor Driver; (2)Relay and Solenoid Drivers; (3)Stepper Motor Controller; (4)Air Core Gauge Instrument Driver; (5)Speedometer Displays; (6)Tachometer Displays; (7)Remote Power Switch; (8)Battery Operated Switch Circuit; (9)Logic and Microcontroller Operated Switch.

Parametrics

HIP4020IB absolute maximum ratings:(1)Supply Voltage; VDD to VSS or VSSA or VSSB : +15V; (2)Neg. Output Supply Voltage, (VSSA, VSSB): (Note 1); (3)DC Logic Input Voltage (Each Input): (VSS -0.5V)to (VDD +0.5V); (4)DC Logic Input Current (Each Input): ±15mA; (5)ILF Fault Output Current : ±15mA; (6)Output Load Current, (Self Limiting, See Elec. Spec.): ±IO(LIMIT).

Features

HIP4020IBfeatures: (1)Two Independent Controlled Complementary MOS Power Output Half H-Drivers (Full-Bridge)for Nominal 3V to 12V Power Supply Operation; (2)Split ±Voltage Power Supply Option for Output Drivers; (3)Load Switching Capabilities to 0.5A; (4)Single Supply Range +2.5V to +15V; (5)Low Standby Current; (6)CMOS/TTL Compatible Input Logic; (7)Over-Temperature Shutdown Protection; (8)Over-Current Limit Protection.

Diagrams

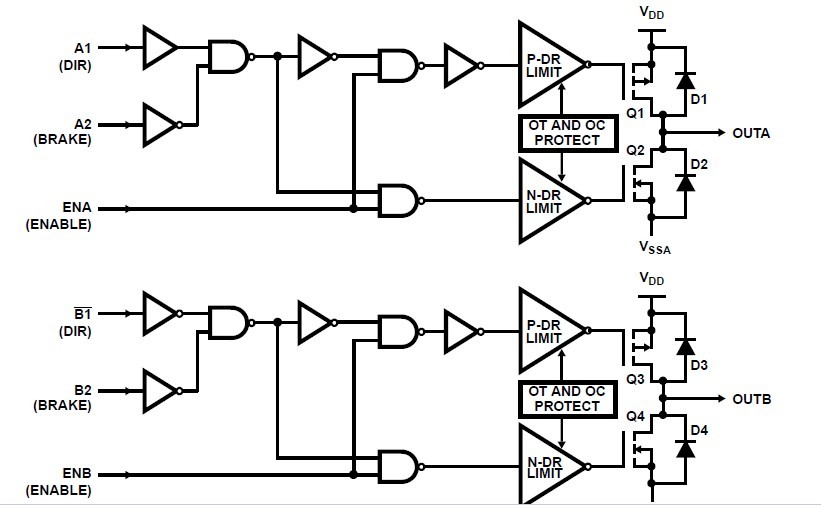

HIP4020IB pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
HIP4020IB
HIP4020IB
Intersil
Motor / Motion / Ignition Controllers & Drivers FLRDG MOTOR DRVR CNTRLR
Data Sheet
0-479: $3.11
479-500: $2.54
HIP4020IBZ
HIP4020IBZ

IC DRIVER FULL-BRIDGE 20-SOIC
Data Sheet
0-1: $4.10
1-25: $3.72
25-100: $2.60
HIP4020IBZT
HIP4020IBZT

IC DRIVER FULL-BRIDGE 20-SOIC
Data Sheet
0-1000: $2.05
