Product Summary

The FW82546EB is a dual port gigabit ethernet controller.

Parametrics

FW82546EB absolute maximum ratings: (1)DC supply voltage on VDD or AVDDH with respect to VSS: 4.6V; (2)VDD: 4.6V; (3)VI/VO: 4.6V; (4)IO: 10mA; (5)TSTG: -40 to 125℃.

Features

FW82546EB features: (1)pci-x revision 1.0a support for frequencies up to 133MHz; (2)multi-function pci device; (3)efficient bus operations; (4)algotithms that optimally use advanced pci.

Diagrams

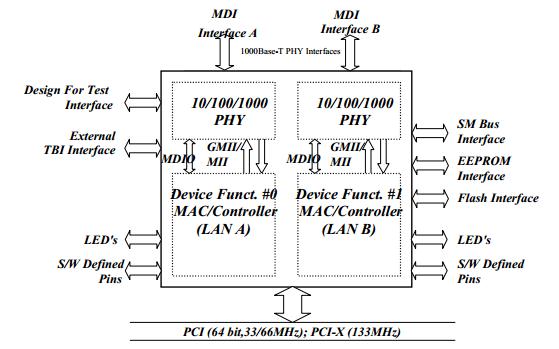

FW82546EB pin connection
