Product Summary
The CY7C130-55DMB is a high-speed CMOS 1K by 8 dual-port static RAM. One port is provided permitting independent access to any location in memory. The CY7C130-55DMB can be utilized as either a standalone 8-bit dual-port static RAM or as a master dual-port RAM in conjunction with the CY7C130-55DMB slave dual- port device in systems requiring 16-bit or greater word widths. It is the solution to applications requiring shared or buffered data, such as cache memory for DSP, bit-slice, or multiprocessor designs.
Parametrics
CY7C130-55DMB absolute maximum ratings: (1)Storage Temperature: –65°C to +150°C; (2)Ambient Temperature with Power Applied: –55°C to +125°C; (3)Supply Voltage to Ground Potential: –0.5V to +7.0V; (4)DC Voltage Applied to Outputs in High Z State: –0.5V to +7.0V; (5)DC Input Voltage: –3.5V to +7.0V; (6)Output Current into Outputs: 20 mA.
Features
CY7C130-55DMB features: (1)True Dual-Ported memory cells which allow simultaneous reads of the same memory location; (2)1K x 8 organization; (3)0.65-micron CMOS for optimum speed/power; (4)High-speed access: 15 ns; (5)Low operating power: ICC = 90 mA (max.); (6)Fully asynchronous operation; (7)Automatic power-down.

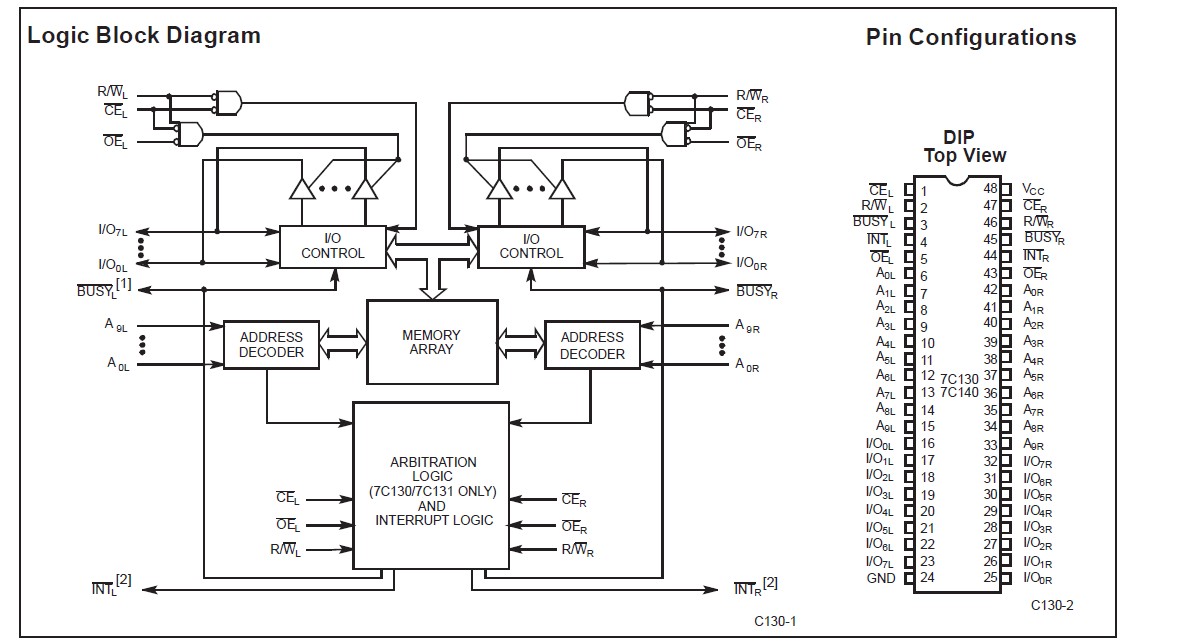

Diagrams
