Product Summary
The ADSP-21062KS160 is a signal processing microcomputer that offers new capabilities and levels of performance. The ADSP-21062KS160 SHARC is a 32-bit processor optimized for high performance DSP applications. The ADSP-21062KS160 builds on the ADSP-21000 DSP core to form a complete system-on-a-chip, adding a dual-ported on-chip SRAM and integrated I/O peripherals supported by a dedicated I/O bus.
Parametrics
ADSP-21062KS160 absolute maximum ratings: (1)Supply Voltage: –0.3 V to +7 V; (2)Input Voltage: –0.5 V to VDD + 0.5 V; (3)Output Voltage Swing: –0.5 V to VDD + 0.5 V; (4)Load Capacitance: 200 pF; (5)Junction Temperature Under Bias: 130℃; (6)Storage Temperature Range: –65 to +150℃; (7)Lead Temperature (5 seconds): +280℃.
Features
ADSP-21062KS160 features: (1)40 MIPS, 25 ns Instruction Rate, Single-Cycle Instruction Execution; (2)120 MFLOPS Peak, 80 MFLOPS Sustained Performance; (3)Dual Data Address Generators with Modulo and Bit-Reverse Addressing; (4)Efficient Program Sequencing with Zero-Overhead Looping: Single-Cycle Loop Setup; (5)IEEE JTAG Standard 1149.1 Test Access Port and On-Chip Emulation; (6)240-Lead Thermally Enhanced MQFP Package; (7)225-Ball Plastic Ball Grid Array (PBGA); (8)32-Bit Single-Precision and 40-Bit Extended-Precision IEEE Floating-Point Data Formats or 32-Bit Fixed-Point Data Format.

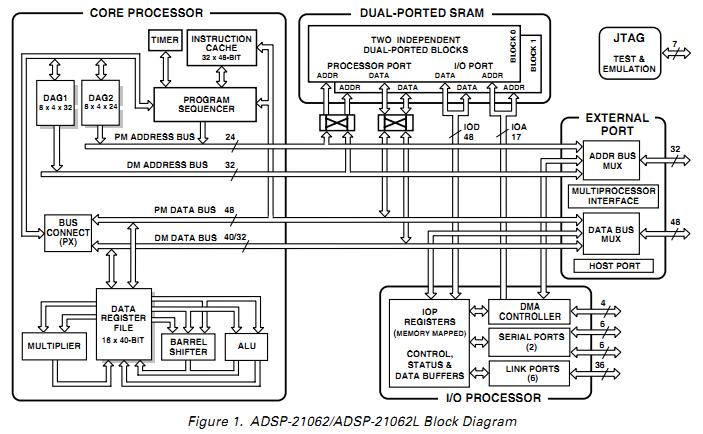

Diagrams
