Product Summary
The AD826AR-REEL is a dual, high speed voltage feedback op amp. The AD826AR-REEL is ideal for use in applications which require unity gain stability and high output drive capability, such as buffering and cable driving. The 50 MHz bandwidth and 350 V/μs slew rate make the AD826AR-REEL useful in many high speed applications including: video, CATV, copiers, LCDs, image scanners and fax machines. The applications of the AD826AR-REEL include Unity Gain ADC/DAC Buffer, Cable Drivers, 8- and 10-Bit Data Acquisition Systems, Video Line Driver, Active Filters.
Parametrics
AD826AR-REEL absolute maximum ratings: (1)Supply Voltage: ±18 V; (2)Input Voltage (Common Mode): ±VS; (3)Differential Input Voltage: ±6 V; (4)Storage Temperature Range (N, R): –65℃ to +125℃; (5)Operating Temperature Range: –40℃ to +85℃; (6)Lead Temperature Range (Soldering 10 seconds): +300℃.
Features
AD826AR-REEL features: (1)High Speed: 50 MHz Unity Gain Bandwidth, 350 V/μs Slew Rate, 70 ns Settling Time to 0.01%; (2)Low Power: 7.5 mA Max Power Supply Current Per Amp; (3)Easy to Use: Drives Unlimited Capacitive Loads, 50 mA Min Output Current Per Amplifier, Specified for +5 V, ±5 V and ±15 V Operation, 2.0 V p-p Output Swing into a 150 Ω Load (VS = +5 V); (4)Good Video Performance: Differential Gain & Phase Error of 0.07% & 0.11°; (5)Excellent DC Performance: 2.0 mV Max Input Offset Voltage.

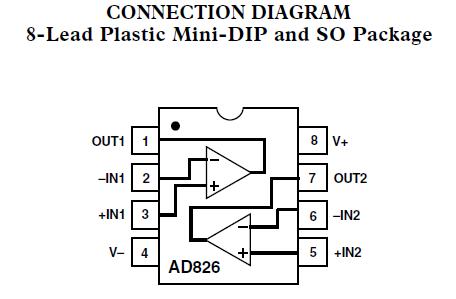

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD826AR-REEL |
|
IC OPAMP VF 50MHZ DUAL LP 8SOIC |
Data Sheet |
|
|
||||||
|
AD826AR-REEL7 |
|
IC OPAMP VF 50MHZ DUAL LP 8SOIC |
Data Sheet |
