Product Summary
The 2SC5876 T106Q is a medium power transistor. Applications are (1)Small signal low frequency amplifier; (2)High speed switching.
Parametrics
2SC5876 T106Q absolute maximum ratings: (1)Collector-base voltage: 60 V; (2)Collector-emitter voltage: 60 V; (3)Emitter-base voltage: 6 V; (4)Collector current IC: 0.5 A; (5)Collector current IC: 1.0 A; (6)Power dissipation: 200 mW; (7)Junction temperature: 150 °C; (8)Range of storage temperature: -55 to +150 °C.
Features
2SC5876 T106Q features: (1)High speed switching. (Tf : Typ. : 80ns at IC = 500mA); (2)Low saturation voltage, typically (Typ. : 150mV at IC = 100mA, IB = 10mA); (3)Strong discharge power for inductive load and capacitance load; (4)Complements the 2SA2088.

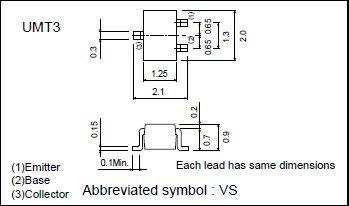

Diagrams
