Product Summary
The 2SC2412KT146Q is a general purpose transistor.
Parametrics
2SC2412KT146Q absolute maximum ratings: (1)Collector-base voltage: 60 V; (2)Collector-emitter voltage: 50 V; (3)Emitter-base voltage: 7 V; (4)Collector current: 0.15 A; (5)Collector power dissipation: 0.2 W; (6)Junction temperature: 150 ℃; (7)Storage temperature: -55 to +150 ℃.
Features
2SC2412KT146Q features: (1)High forward current transfer ratio hFE; (2)S-Mini type package, allowing downsizing of the equipment and automatic insertion through the tape packing and the magazine packing.

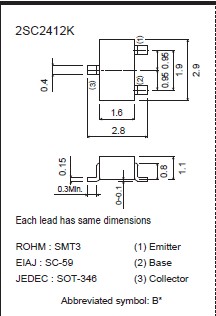

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 2SC2412KT146Q |
ROHM Semiconductor |
Transistors Bipolar (BJT) NPN 50V 0.15A |
Data Sheet |
|
|
||||||||||||
