Product Summary

The 2SA1647-Z-E1 is a mold power transistor developed for highspeed switching and features a very low collector-to-emitter saturation voltage. This transistor is ideal for use in switching regulators, DC/DC converters, motor drivers, solenoid drivers, and other low-voltage power supply devices, as well as for high-current switching.

Parametrics

2SA1647-Z-E1 absolute maximum ratings: (1)Collector to base voltage: -150 V; (2)Collector to emitter voltage: -100 V; (3)Base to emitter voltage: -7.0 V; (4)Collector current (DC): -5.0 A; (5)Collector current (pulse): -10 A; (6)Base current (DC): -2.5 A; (7)Total power dissipation: 18 W; (8)Total power dissipation: 1.0, 2.0 W; (9)Junction temperature: 150 °C; (10)Storage temperature: -55 to +150 °C.

Features

2SA1647-Z-E1 features: (1)Available for high-current control in small dimension; (2)Z type is a lead processed product and is deal for mounting a hybrid IC.; (3)Low collector saturation voltage: VCE(sat)= -0.3 V MAX. (@IC = -3 A); (4)Fast switching speed: tf = 0.4 μs MAX. (@IC = -3 A); (5)High DC current gain and excellent linearity.

Diagrams

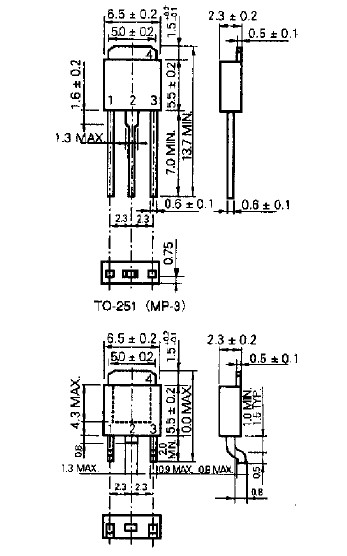

2SA1647-Z-E1 pin connection
