Product Summary
The sts2dnf30l is a Power MOSFET for DC/DC conversion. This device utilizes the advanced design rules of ST’s proprietary STripFET technology. The innovative process coupled with unique metallization techniques makes it possible to produce the most advanced low voltage Power MOSFET in an SO-8 package. The sts2dnf30l is therefore suitable for demanding DC-DC converter applications where high efficiency at high output current is needed. The sts2dnf30l is suitable for Switching applications.
Parametrics
sts2dnf30l absolute maximum ratings: (1)VDS, Drain-source voltage (VGS = 0): 30 V; (2)VGS, Gate-source voltage: ±18 V; (3)ID, Drain current (continuous) at TC = 25℃: 25 A; (4)ID Drain current (continuous) at TC=100℃: 18 A; (5)IDM, Drain current (pulsed): 100 A; (6)PTOT, Total dissipation at TC = 25℃: 3.2 W.
Features
sts2dnf30l features: (1)Optimal RDS(on) × Qg trade off @ 4.5 V; (2)Conduction losses reduced; (3)Switching losses reduced.

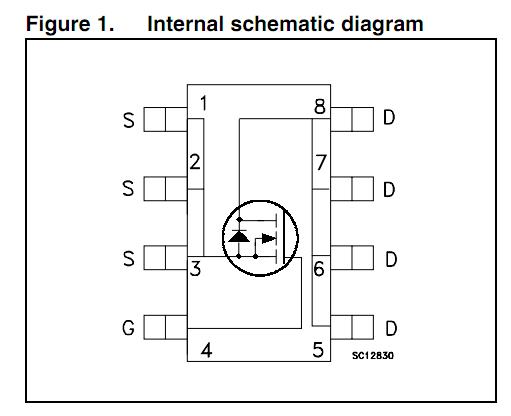

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 STS2DNF30L |
STMicroelectronics |
MOSFET N-Ch 30 Volt 3 Amp |
Data Sheet |
|
|
||||||||||||
