Product Summary

The RPI-352 is a compact, double-layer mold photointerrupter. It is ideal for: (1)Floppy disk drives; (2)Printers; (3)Facsimiles; (4)VCR.




Parametrics

rpi-352 absolute maximum ratings: (1)Forwaed current IF: 50 mA; (2)Reverse voltage VR: 5 V; (3)Power dissipation PD: 80 mW; (4)Collector-emitter voltage VCEO: 30 V; (5)Emitter-collector voltage VCEO: 4.5 V; (6)Collector power dissipation pc: 80 mW; (7)Operating temperature topr: -25 to 85 °C.

Features

rpi-352 features: (1)Positioning pin enables precision mounting; (2)Gap between emitter and detector is 3.0 mm; (3)Compact.

Diagrams

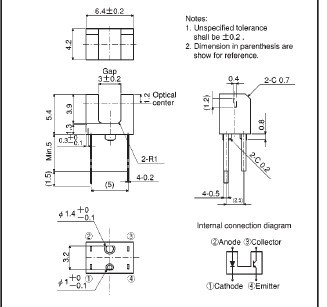

rpi-352 pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
RPI-352
RPI-352
ROHM Semiconductor
Optical Switches, Transmissive, with Phototransistor Output PHOTOINTERRUPTER 3mm Gap 4.2x5.4mm
Data Sheet
0-1: $0.43
1-25: $0.38
25-100: $0.30
100-500: $0.24
