Product Summary
The TMP36GS is a low voltage, precision centigrade temperature sensor. The TMP36GS provides a voltage output that is linearly proportional to the Celsius (Centigrade) temperature. The TMP36GS does not require any external calibration to provide typical accuracies of ±1℃ at +25℃ and ±2℃ over the –40℃ to +125℃ temperature range. The applications of the TMP36GS are environmental control systems, thermal protection, industrial process control, fire alarms, power system monitors and CPU thermal management.
Parametrics
TMP36GS absolute maximum ratings: (1)Supply voltage: 7 V; (2)Shutdown pin: GND ≤ SHUTDOWN ≤ +VS; (3)Output pin: GND ≦ VOUT ≦ +VS; (4)Operating temperature range: –55 to +150℃; (5)Dice junction temperature: 175℃; (6)Storage temperature range: –65 to +160℃; (7)Lead temperature (soldering, 60 sec): 300℃.
Features
TMP36GS features: (1)Low voltage operation (2.7 V to 5.5 V); (2)Calibrated directly in ℃; (3)10 mV/℃ scale factor (20 mV/℃ on TMP37); (4)±2℃ accuracy over temperature (typ); (5)±0.5℃ linearity (typ); (6)Stable with large capacitive loads; (7)Specified –40 to +125℃, operation to +150℃; (8)Less than 50μA quiescent current; (9)Shutdown current 0.5 μA max; (10)Low self-heating.

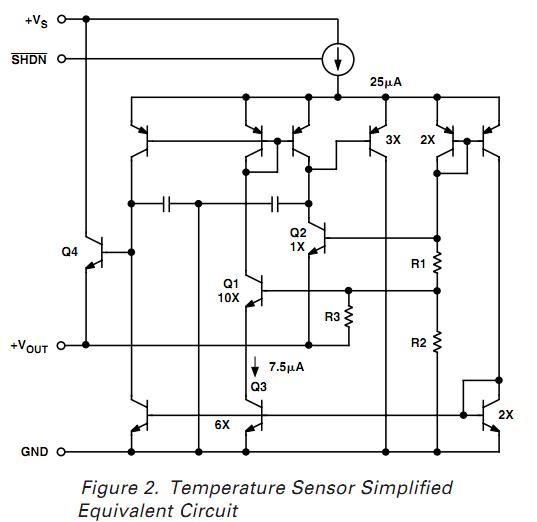

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TMP36GS |
Analog Devices Inc |
IC SENSOR TEMP 2.7/5.5 8SOIC |
Data Sheet |
|
|
||||||||||||||||||||
 |
TMP36GS-REEL |
|
IC SENSOR TEMP 2.7/5.5 8SOIC TR |
Data Sheet |
Negotiable |
|
||||||||||||||||||||
|
TMP36GS-REEL7 |
|
IC SENSOR TEMP 2.7/5.5 8SOIC TR |
Data Sheet |
Negotiable |
|
||||||||||||||||||||
|
TMP36GSZ |
|
IC SENSOR TEMP 2.7/5.5 8SOIC |
Data Sheet |
|
|
||||||||||||||||||||
|
TMP36GSZ-REEL |
|
IC SENSOR TEMP 2.7/5.5V 8SOIC |
Data Sheet |
|
|
||||||||||||||||||||
|
TMP36GSZ-REEL7 |
|
IC SENSOR TEMP 2.7/5.5V 8SOIC |
Data Sheet |
|
|
||||||||||||||||||||
