Product Summary

The TMP01FS is a temperature sensor which generates a voltage output proportional to absolute temperature and a control signal from one of two outputs when the TMP01FS is either above or below a specific temperature range. Applications are (1)Over/Under temperature sensor and alarm; (2)Board level temperature sensing; (3)Temperature controllers; (4)Electronic thermostats; (5)Thermal protection; (6)HVAC systems; (7)Industrial process control; (8)Remote sensors.

Parametrics

TMP01FS absolute maximum ratings: (1)Maximum supply voltage:–0.3 V to +15 V; (2)Maximum input voltage(SETHIGH, SETLOW):–0.3 V to [(V+) +0.3 V]; (3)Maximum output current (VREF, VPTAT):2 mA; (4)Maximum output current (open collector outputs):50 mA; (5)Maximum output voltage (open collector outputs):15 V; (6)Operating temperature range:–55℃ to +150℃; (7)Dice junction temperature:+150℃; (8)Storage temperature range:– 65℃ to +150℃; (9)Lead temperature (soldering, 60 sec):+300℃.

Features

TMP01FS features: (1)–55℃ to +125℃ operation; (2)61.0℃ accuracy over temperature (typ); (3)Temperature-proportional voltage output; (4)User programmable temperature trip points; (5)User programmable hysteresis; (6)20 mA open collector trip point outputs; (7)TTL/CMOS compatible; (8)Single-supply operation (4.5 V to 13.2 V); (9)Low cost 8-pin dip and SO packages.

Diagrams

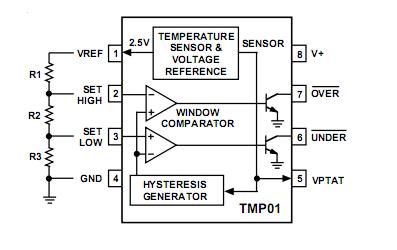

TMP01FS pin connection
