Product Summary
The c106dg is a Sensitive Gate Silicon Controlled Rectifier.
Parametrics
c106dg absolute maximum ratings: (1)On-State RMS Current (180° Conduction Angles, TC = 80°C)IT(RMS): 4.0 A; (2)Average OnState Current (180° Conduction Angles, TC = 80°C)IT(AV): 2.55 A; (3)Peak Non-Repetitive Surge Current (1/2 Cycle, Sine Wave, 60 Hz, TJ = +110°C)ITSM: 20 A; (4)Circuit Fusing Considerations (t = 8.3 ms)I 2 t: 1.65 A2 s; (5)Forward Peak Gate Power (Pulse Width ≤1.0 TC = 80°C)PGM: 0.5 W; (6)Forward Average Gate Power (Pulse Width ≤1.0 sec, TC = 80°C)PG(AV): 0.1 W; (7)Forward Peak Gate Current (Pulse Width ≤1.0 TC = 80°C)IGM: 0.2 A; (8)Operating Junction Temperature Range TJ: 40 to +110 °C; (9)Storage Temperature Range Tstg: 40 to +150 °C; (10)Mounting Torque (Note 2: 6.0 in. lb.
Features
c106dg features: (1)Glassivated Surface for Reliability and Uniformity; (2)Power Rated at Economical Prices; (3)Practical Level Triggering and Holding Characteristics; (4)Flat, Rugged, Thermopad Construction for Low Thermal Resistance, High Heat Dissipation and Durability; (5)Sensitive Gate Triggering; (6)Pb−Free Packages are Available*.

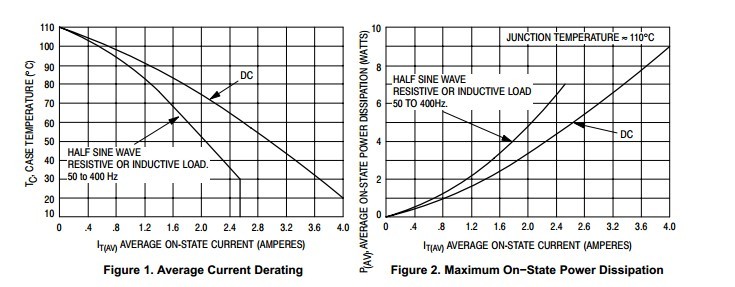

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 C106DG |
ON Semiconductor |
SCRs 400V 4A |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
 |
C106 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |

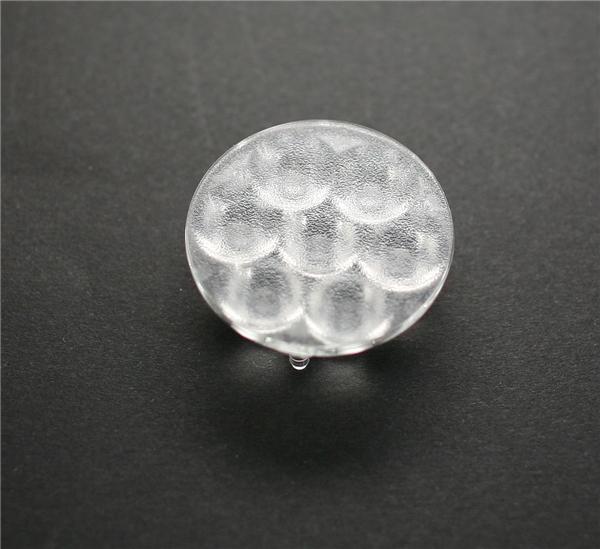

C10633_MX6-7-MD |
Ledil |
LED Lighting Lenses CREE MX6 7-IN-1 LENS 7 UP |
Data Sheet |
|
|
||||||||||||
 |

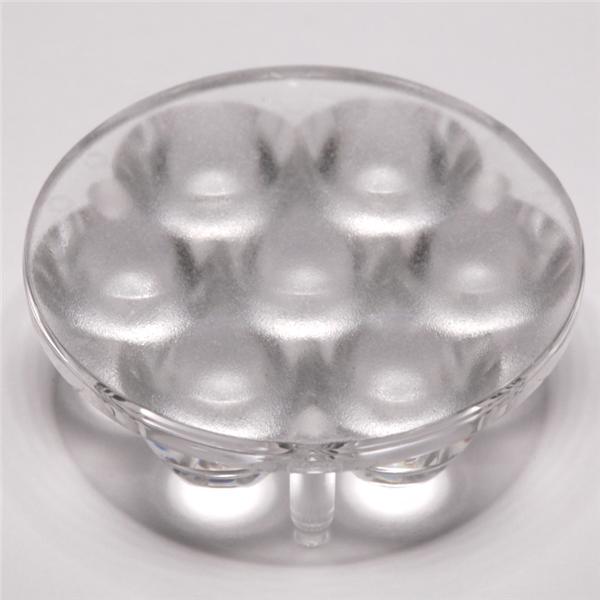

C10633_NIS83-MX-7-MD |
Ledil |
LED Lighting Lenses NICHIA 083/183 LED 7-IN-1 7 UP |
Data Sheet |
|
|
||||||||||||
 |
C10680RJL |
TE Connectivity |
Wirewound Resistors - Through Hole C10 680R 5% (LOOSE) |
Data Sheet |
|
|
||||||||||||
 |

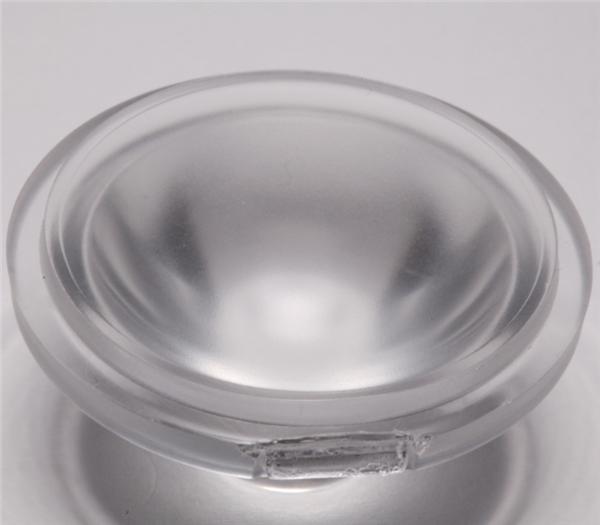

C10684_EVA-D |
