Product Summary
The TOP224YN is a three-terminal off-line PWM switch. The TOP224YN is more cost effective and provides several enhancements over the first generation TOPSwitch family. The TOP224YN extends the power range from 100W to 150W for 100/115/230 VAC input and from 50W to 90W for 85-265 VAC universal input.
Parametrics
TOP224YN absolute maximum ratings: (1) DRAIN Voltage: -0.3 to 700V; (2) DRAIN Current Increase in 100 ns except during blanking time: 0.1×ILIMIT (MAX) ; (3) CONTROL Voltage: -0.3 to 9V; (4) CONTROL Current: 100mA; (5) Storage Temperature: -65 to 150°C; (6) Operating Junction Temperature: -40 to 150°C; (7) Lead Temperature: 260°C.
Features
TOP224YN features: (1) Lowest cost, lowest component count switcher solution; (2) Cost competitive with linears above 5W; (3) Very low AC/DC losses (R) up to 90% efficiency; (4) Built-in Auto-restart and Current limiting; (5) Latching Thermal shutdown for system level protection; (6) Implements Flyback, Forward, Boost or Buck topology; (7) Works with primary or opto feedback; (8) Stable in discontinuous or continuous conduction mode; (9) Source connected tab for low EMI; (10) Circuit simplicity and Design Tools reduce time to market.

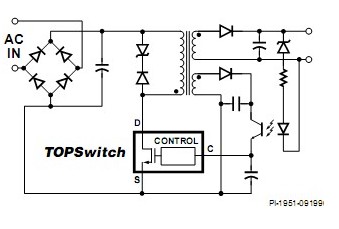

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TOP224YN |
Power Integrations |
AC/DC Switching Converters 45W 85-265 VAC 75W100/115/230 VAC |
Data Sheet |
|
|
||||||||||||
