Product Summary
The PST600DMT-R is a system reset monolithic IC. The PST600DMT-R operates in a variety of CPU systems and other logic systems by detecting power supply voltage, so that the system can be reset accurately when power is turned on or when power is momentarily cut. The applications of the PST600DMT-R are: Microcomputers, CPU, MPU reset circuits; Logic circuit reset circuits; Battery voltage check circuits; Back-up power supply switching circuits; Level detection circuits.
Parametrics
PST600DMT-R absolute maximum ratings: (1)Storage temperature TSTG: -40~+125 ℃; (2)Operating temperature TOPR: -20~+75 ℃; (3)Power supply voltage VCC max.: -0.3~10 V; (4)Allowable loss Pd: 200 (MMP-3A) mW.
Features
PST600DMT-R features: (1)Follows load current so that circuit current flow increases for ON, and has low current consumption for both ON and OFF. No load : ICCL=7μA typ.; ICCH=5μA typ.; (2)Low operating limit voltage 0.65V typ; (3)Hysteresis voltage provided in detection voltage 50mV typ; (4)The following 10 ranks of detection voltages are available.

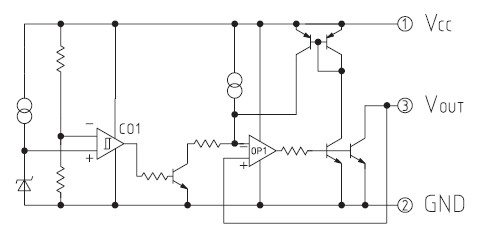

Diagrams
