Product Summary
The mp2359dj-lf-z is a monolithic non-synchronous step-down switch mode converter with an integrated power MOSFET. The mp2359dj-lf-z achieves 1.2A continuous output current over a wide input supply range with excellent load and line regulation. Current mode operation provides fast transient response and eases loop stabilization. Fault condition protection includes cycle-by-cycle current limiting and thermal shutdown. The mp2359dj-lf-z is available in TSOT23-6 and SOT23-6 packages. The applications of mp2359dj-lf-z are: Cable Set-Top Box/Digital Video Recorders, xDSL Modems/Routers, Pre-Regulator for Linear Regulators.
Parametrics
mp2359dj-lf-z absolute maximum ratings: (1)Cable Set-Top Box/Digital Video Recorders; (2)xDSL Modems/Routers; (3)Pre-Regulator for Linear Regulators.
Features
mp2359dj-lf-z features: (1)1.2A Output Current; (2)Wide 4.5V to 24V Operating Input Range; (3)Output Adjustable from 0.8V to 15V; (4)Fully Assembled and Tested.

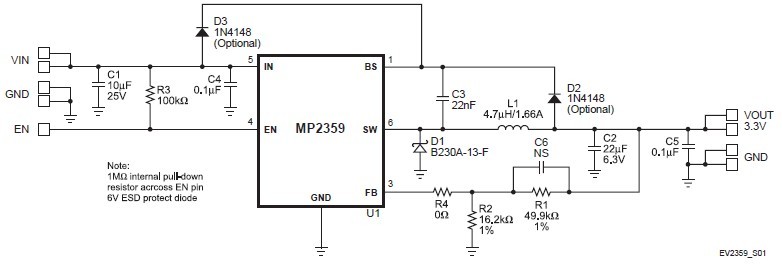

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() MP2359DJ-LF-Z |
![]() Monolithic Power Systems (MPS) |
![]() Switching Converters, Regulators & Controllers 1A 24V 1.4MHz Non-sync Buck |
![]() Data Sheet |
![]()
|
|
||||||||||||
