Product Summary

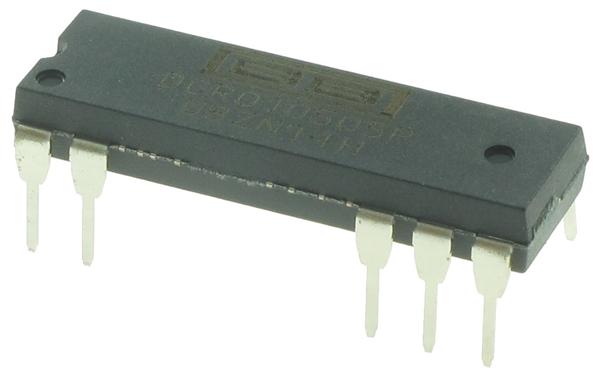

The DCR010505P is a high-efficiency, input-isolated, output-regulated DC/DC converter. In addition to 1W nominal, galvanically-isolated output power capability, the DCR010505P offers very low out-put noise, thermal protection and high accuracy. The applications of the device include point-of-use power conversion, digital interface power, ground loop elimination and power-supply noise reduction.
Parametrics
DCR010505P absolute maximum ratings: (1)Input Voltage: 7V; (2)Storage Temperature: –60 to +125℃; (3)Lead Temperature (soldering, 10s): 270℃.
Features
DCR010505P features: (1)UL1950 recognized; (2)PDIP-18, SO-28(1); (3)53W/in3 (3.3W/cm3) power density; (4)device-to-device synchronization; (5)thermal protection; (6)1000Vrms isolation; (7)400kHz switching; (8)125 fits at 55℃; (9)±10% input range; (10)short-circuit protected; (11)5V, 12V, 24V inputs; (12)3.3V, 5V outputs; (13)high efficiency.

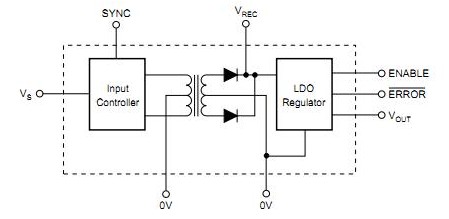

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |

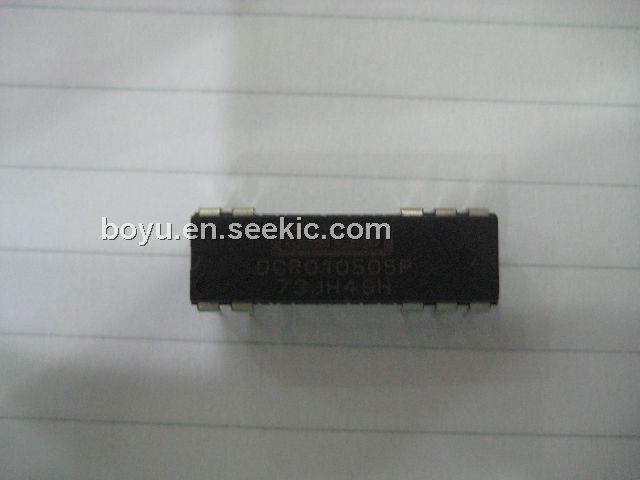

![]() DCR010505P |
![]() Texas Instruments |
![]() DC/DC Converters Mini 1W Iso Regs DC/DC Converter |
![]() Data Sheet |
![]()
|
|
||||||||||||
