Product Summary
The 2sa2097 is a transistor. Applications are (1)high-speed swtching applications; (2)DC-DC converter applications.
Parametrics
2sa2097 absolute maximum ratings: (1)Collector-base voltage VCBO: 50 V; (2)Collector-emitter voltage VCEO: 50 V; (3)Emitter-base voltage VEBO: 7 V; (4)Collector current Pulse ICP: 10 A; (5)Base current IB: 0.5 A; (6)Collector power dissipation Pc: 20 W; (7)Junction temperature Tj: 150 °C; (8)Storage temperature range Tstg: -55 to 150 °C.
Features
2sa2097 features: (1)High DC current gain: hFE = 200 to 500 (IC = 0.5 A); (2)Low collector-emitter saturation: VCE (sat)= 0.27 V (max); (3)High-speed switching: tf = 55 ns (typ.).

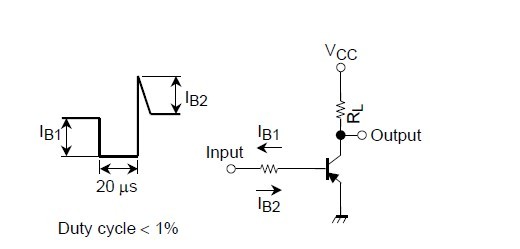

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 2SA2097(TE16L1,NQ) |
|
TRANSISTOR PNP 50V 5A SC-62 |
Data Sheet |
|
|
||||||
 |
2SA2097 |
Other |
|
Data Sheet |
Negotiable |
|
||||||
