Product Summary
The 3362S-1-203LF is a 1/4 ” square trimpot trimming potentiometer.
Parametrics
3362S-1-203LF absolute maximum ratings: (1)Power rating (300 volts max.), 70 °C: 0.50 watt; 125 °C: 0 watt; (2)Temperature range: -55 °C to +125 °C; (3)Temperature coeffi cient: ±100 ppm/°C; (4)Seal test: 85 °C Fluorinert; (5)Humidity: MIL-STD-202 Method 103 96 hours (2 % ΔTR; 10 Megohms IR); (6)Vibration: 30 G (1 % ΔTR; 1 % ΔVR); (7)Shock: 100 G (1 % ΔTR; 1 % ΔVR); (8)Load life: 1,000 hours 0.5 watt @ 70 °C (3 % ΔTR; 3 % or 3 ohms, whichever is greater, CRV); (9)Rotational life: 200 cycles (4 % ΔTR; 3 % or 3 ohms, whichever is greater, CRV).
Features
3362S-1-203LF features: (1)Single-Turn / Cermet / Industrial / Sealed; (2)Miniature package; (3)Rotor designed for automatic machine adjust interface; (4)Withstands harsh environments and immersion cleaning processes; (5)Tape and reel packaging available; (6)RoHS compliant version available; (7)For trimmer applications/processing guidelines.

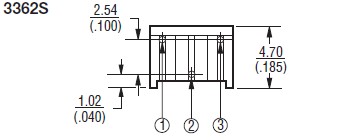

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 3362S-1-203LF |
Bourns |
Trimmer Resistors - Through Hole 1/4"SQ 20KOHMS 10% 0.5WATTS |
Data Sheet |
|
|
||||||||||||
