Product Summary

The TLP630GB is a TOSHIBA Photocoupler. The TLP630GB consists of a photo-transistor optically coupled to two gallium arsenide infrared emitting diode connected inverse parallel in a six lead plastic DIP package.

Parametrics

TLP630GB absolute maximum ratings: (1)Forward current IF(RMS): 60 mA; (2)Forward current derating (Ta＞39℃): -0.7 mA /℃; (3)Peak forward current (100μs pulse,100pps) IFPT: ±1 A; (4)Collectoremitter voltage VCEO: 55 V; (5)Collectorbase voltage VCBO: 80 V; (6)Emittercollector voltage VECO: 7 V; (7)Emitterbase voltage VEBO: 7 V; (8)Collector current IC: 50 mA; (9)Power dissipation PC: 150 mW; (10)Operating temperature range Topr: -55 to 100℃; (11)Storage temperature range Tstg: -55 to 125℃.

Features

TLP630GB features: (1)Collector.emitter voltage: 55V min.; (2)Current transfer ratio: 50% min. Rank GB: 100% min.; (3)Isolation voltage: 5000Vrms min.; (4)UL recognized: UL1577 file no. E67349.

Diagrams

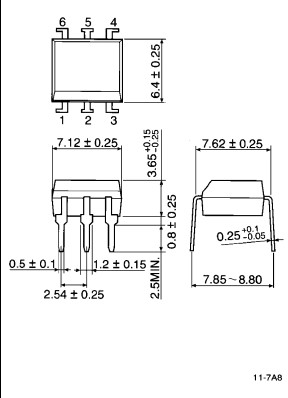

TLP630GB dimension
