Product Summary

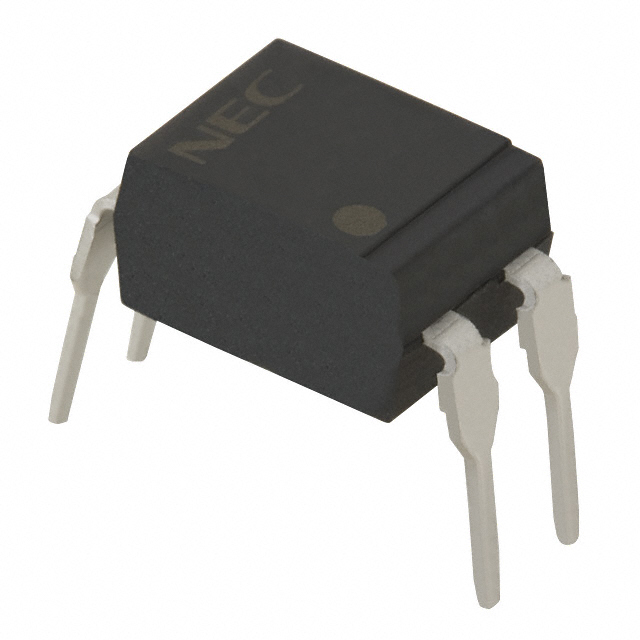

The PS2561-1-V is an optically coupled isolator containing a GaAs light emitting diode and an NPN silicon phototransistor. The PS2561-1-V is in a plastic DIP (Dual In-line Package) for surface mount. Applications are (1)Power supply; (2)Telephone/FAX.; (3)FA/OA equipment; (4)Programmable logic controller.

Parametrics

PS2561-1-V absolute maximum ratings: (1)Reverse Voltage VR: 6 V; (2)Forward Current (DC)IF: 80 mA; (3)Peak Forward Current IFP: 1 A; (4)Collector to Emitter Voltage VCEO: 80 V; (5)Emitter to Collector Voltage VECO: 7 V; (6)Operating Ambient Temperature TA: -55 to +100 °C; (7)Storage Temperature Tstg: -55 to +150 °C.

Features

PS2561-1-V features: (1)High isolation voltage BV = 5 000 Vr.m.s.: standard products BV = 3 750 Vr.m.s.: VDE0884 approved products (Option); (2)High collector to emitter voltage (VCEO = 80 V); (3)High current transfer ratio (CTR = 200 % TYP.); (4)High-speed switching (tr = 3 ms TYP., tf = 5 ms TYP.); (5)UL approved (File No. E72422 (S)); (6)CSA approved (No. CA 101391); (7)BSI approved (BS415, BS7002)No. 7112; (8)SEMKO approved (SS4410165)No. 9317144; (9)NEMKO approved (NEK-HD 195S6)No. A21409; (10)DEMKO approved (Section 101, 137)No. 300535; (11)FIMKO approved (E69-89)No. 167265-08; (12)VDE0884 approved (Option).

Diagrams

PS2561-1-V pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
PS2561-1-V
PS2561-1-V

OPTO COUPLER 1CH TRANS OUT VD
Data Sheet
Negotiable
PS2561-1-V-A
PS2561-1-V-A
CEL
Transistor Output Optocouplers SGL Tr DC BSI Couplr
Data Sheet
0-1: $0.31
1-10: $0.29
10-100: $0.23
100-500: $0.18
PS2561-1-V-H-A
PS2561-1-V-H-A
CEL
Transistor Output Optocouplers Hi-Iso Photo 1-Ch
Data Sheet
0-1: $0.31
1-10: $0.29
10-100: $0.23
100-500: $0.18
PS2561-1-V-L-A
PS2561-1-V-L-A
CEL
Transistor Output Optocouplers SGL Tr DC BSI Couplr
Data Sheet
0-1: $0.31
1-10: $0.29
10-100: $0.23
100-500: $0.18
PS2561-1-V-W-A
PS2561-1-V-W-A
CEL
Transistor Output Optocouplers Hi-Iso Photo 1-Ch
Data Sheet
0-1: $0.31
1-10: $0.29
10-100: $0.23
100-500: $0.18
PS2561-1-V-D-A
PS2561-1-V-D-A
CEL
Transistor Output Optocouplers Hi-Iso Photo 1-Ch
Data Sheet
0-1: $0.31
1-10: $0.29
10-100: $0.23
100-500: $0.18
