Product Summary
The ts2951cs50 rl is a low power voltage regulator. The ts2951cs50 rl is excellent choice for use in battery-powered applications such as cordless telephone, radio control systems, and portable computer. The ts2951cs50 rl is feature very low quiescent current (75uA Typ.) and very low drop output voltage (Typ. 40uV at light load and 380 mV at 100 mA). This includes a tight initial tolerance of 0.5% typ.(A version), extremely good load and line regulation 0.05% typ. and very low output temperature coefficient, making the TS2950/A & TS2951/A useful as a low-power voltage reference. It is ideal for: (1)Battery powered systems; (2)Portable instrumentation; (3)Avionics; (4)Automotive Electronics; (5)SMPS Post-Regulator; (6)Voltage Reference; (7)Portable/Palm top / Notebook computers; (8)Portable consumer equipment; (9)Radio control system.
Parametrics
ts2951cs50 rl absolute maximum ratings: (1)Input Supply Voltage Vin: - 0.3 to +30 V; (2)Feedback Input Voltage Vfeedback: - 1.5 to +30 V; (3)Shutdown Input Voltage Vshutdown: - 0.3 to +30 V; (4)Error Comparator Output Voltage Verror: - 0.3 to +30 V; (5)Power Dissipation Pd: Internally Limited W; (6)Operating Junction Temperature TS2950/2951: - 40 to +125°C; (7)Storage Temperature Range TSTG: -65 to +150°C; (8)Lead Temperature (Soldering 5 second)TSTG: 260°C.
Features
ts2951cs50 rl features: (1)Output voltage available in 5V, 3.3V & 3V; (2)Extremely low quiescent current; (3)Low dropout voltage; (4)Extremely tight load and line regulation; (5)Very low temperature coefficient; (6)Need only 1uF for stability; (7)Unregulated DC input can withstand -20V reverse battery and +60V positive transients; (8)Use as Regulator or Reference; (9)Stable with low-ESR output capacitors; (10)Current and thermal limiting; (11)Direct replacement for LP2950 & LP2951 sockets.

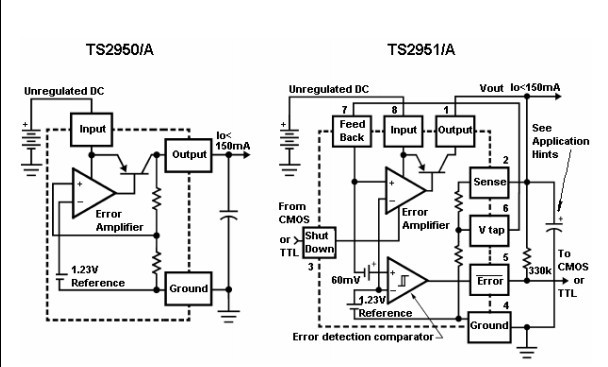

Diagrams
