MIC5800BM TR

MIC5800BMTR, latched driver, 50 V, 500 mA, 2.1 W, 4.4 MHz, SOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.06~1.06 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1342 :	1.06 / Piece

PartNumber:: MIC5800BM TR

Brand:: Master Instrument Corporation - MIC | Pack: SOP | D/C: 03+

Availability:: Supply Ability: 100/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Sukey's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-07

From Other Seller

Part Number:MIC5800BM TR
US $1.06 - 1.06
Quantity:

piece

Product Summary

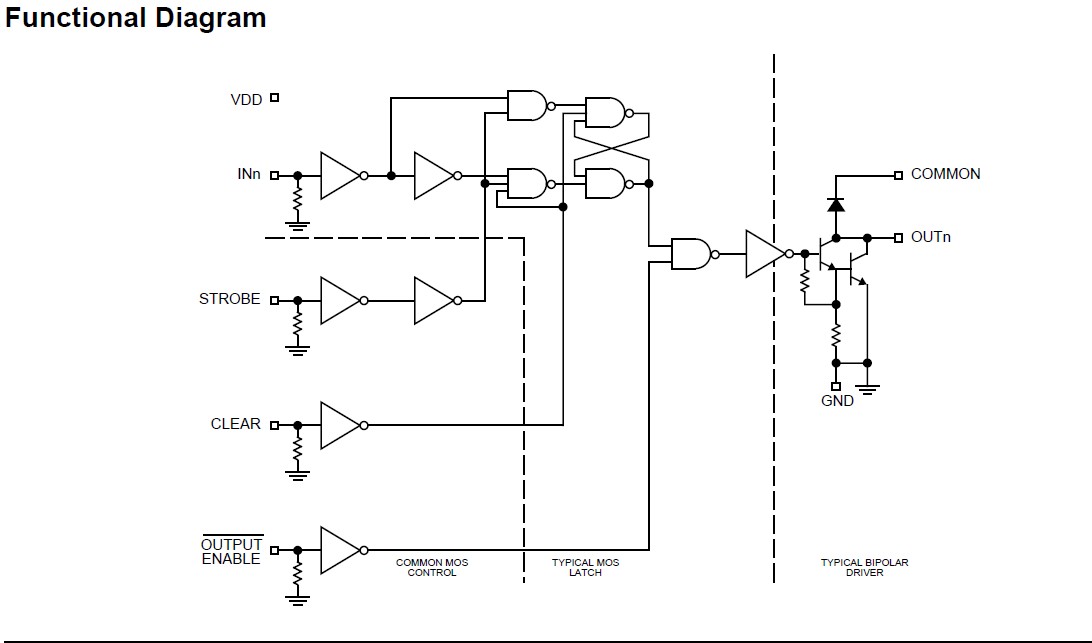

The MIC5800BMTR is a latched driver. It is high-voltage, highcurrent integrated circuits comprised of four or eight CMOS data latche, a bipolar Darlington transistor driver for each latch, and CMOS control circuitry for the common CLEAR, STROBE, and OUTPUT ENABLE function.

Parametrics

MIC5800BMTR absolute maximum ratings: (1)Output Voltage: 50V; (2)Supply Voltage: 15V; (3)Input Voltage Range: –0.3V to VDD + 0.3V; (4)Continuous Collector Current: 500mA; (5)Package Power Dissipation Plastic DIP (Note 1): 2.1W; (6)Package Power Dissipation Plastic SOIC (Note 3): 1.0W; (7)Operating Temperature Range: –40°C to +85°C; (8)Storage Temperature Range: –65°C to +125°C.

Features

MIC5800BMTR features: (1)4.4MHz Minimum Data Input Rate; (2)High-Voltage, Current Sink Outputs; (3)Output Transient Protection; (4)CMOS, PMOS, NMOS, and TTL Compatible Inputs; (5)Internal Pull-Down Resistors; (6)Low-Power CMOS Latches.
