Product Summary
The MIC2563A-OYSM-TR is a dual slot PCMCIA (personal computer memory card international association) and cardbus power controller handles all PC card slot power supply pins, both VCC and VPP. The MIC2563A switches between the three VCC voltages (0V, 3.3V and 5.0V) and the VPP voltages (OFF, 0V, 3.3V, 5V, or 12.0V) required by PC Cards. The MIC2563A-OYSM-TR switches voltages from the system power supply to VCC and VPP. The applications of the MIC2563A-OYSM-TR include dual slot pc card power supply pin voltage switch, cardbus slot power supply control, data collection systems, machine control data input systems, wireless communications, bar code data collection systems, instrumentation configuration/datalogging, docking stations (portable and desktop), power supply management, power analog switching.
Parametrics
MIC2563A-OYSM-TR absolute maximum ratings: (1)Power Dissipation, TAMBIENT ≤ 25℃: Internally Limited, SSOP: 800 mW; (2)Derating Factors (To Ambient), SSOP: 4 mW/℃; (3)Storage Temperature: -65℃ to +150℃; (4)Operating Temperature (Die): 125℃; (5)Lead Temperature (5 sec): 260℃; (6)Supply Voltage, VPP IN: 15V; VCC3 IN: 7.5V; VCC5 IN: 7.5V; (7)Logic Input Voltages: -0.3V to +10V.
Features
MIC2563A-OYSM-TR features: (1)Single Package Controls Two PC Card Slots; (2)High Efficiency, Low Resistance Switches Require No 12V Bias Supply; (3)No External Components Required; (4)Output Current Limit and Overtemperature Shutdown; (5)Ultra Low Power Consumption; (6)Complete Dual Slot PC Card/CardBus VCC and VPP Switch Matrix in a Single Package; (7)Logic Compatible with Industry Standard PC Card Logic Controllers; (8)No Voltage Shoot-Through or Switching Transients; (9)Break-Before-Make Switching; (10)Digital Selection of VCC and VPP Voltages; (11)Over 1A VCC Output Current for Each Section; (12)Over 250mA VPP Output Current for Each Section; (13)28-Pin SSOP Package.

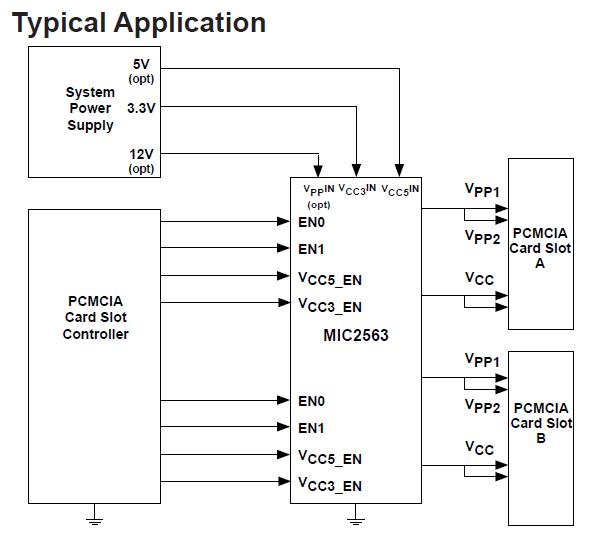

Diagrams
