M61006FP

semiconductor integrated circuit, 5.5V, 320mW, SOIC

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.39~1.39 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 3000 :	1.39 / Piece

PartNumber:: M61006FP

Brand:: MITSUBISHI Electronics - MITSUBISHI | Pack: SOIC | D/C: 02+

Availability:: Supply Ability: 100/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Sukey's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-03

From Other Seller

Part Number:M61006FP
US $1.39 - 1.39
Quantity:

piece

Product Summary

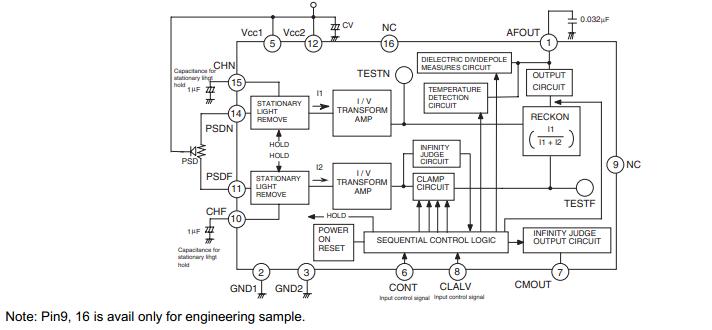

The M61006FP is a semiconductor integrated circuit including distance detection signal processing circuit for 3 V supply voltage. The M61006FP transforms each optical inflow current I1 and I2 from PSD SENSOR into the voltage, and integrates the output after doing calculation corresponds to I1 / (I1+I2), and outputs it as the voltage data. Applications of the include: Auto focus control for a camera, short distance sensor, etc.

Parametrics

M61006FP absolute maximum ratings: (1) Supply voltage Vcc: 7V; (2) Power dissipation pd: 320mW; (3) Thermal derating Kθ: -3.2mW/°C; (4) Pin supply voltage VIF: 7V; (5) Another terminal VI/O: 0 to Vcc+0.3V; (6) Output inflow current Icmount: 0.5mA; (7) Operating temperature Topr: -10 to 50°C; (8) Storage temperature Tstg: -40 to 125°C.

Features

M61006FP features: (1) Wide supply voltage range: Vcc = 2.2 to 5.5V; (2) Including clamp level switching circuit (It is possible to set a clamp level to 15 points with outside control.) ; (3) Including infinity discrimination function (clamp on detection function) ; (4) Including POWER ON RESET function; (5) Including simple temperature detection function (It is possible to correct temperature with transmitting this output to the microcomputer. ) .
