Product Summary
The ltc1536cs8 is a precision triple supply monitor. The ltc1536cs8 is designed for PCI local bus applications with multiple supply voltages that require low power, small size, high speed and high accuracy supply monitoring. Applications are (1)PCI-Based Systems; (2)Desktop Computers; (3)Notebook Computers; (4)Intelligent Instruments; (5)Portable Battery-Powered Equipment; (6)Network Servers.
Parametrics
ltc1536cs8 absolute maximum ratings: (1)VCC3, VCC5, VCCA: –0.3V to 7V; (2)RST, SRST : –0.3V to 7V; (3)RST : – 0.3V to VCC3 + 0.3V; (4)PBR : – 7V to 7V; (5)Operating Temperature Range: 0°C to 70°C; (6)Storage Temperature Range : –65°C to 150°C; (7)Lead Temperature (Soldering, 10 sec): 300°C.
Features
ltc1536cs8 features: (1)Simultaneously Monitors 5V, 3.3V and Adjustable Inputs; (2)Guaranteed Threshold Accuracy: ±0.75%; (3)Low Supply Current: 100mA; (4)Internal Reset Time Delay: 200ms; (5)Manual PushbuttoReset Input; (6)Active Low and Active High Reset Outputs; (7)Active Low “Soft” Reset Output; (8)Power Supply Glitch Immunity; (9)Meets PCI tFAIL Timing Specifications Rev 2.1; (10)8-PiSO and MSOP Packages.

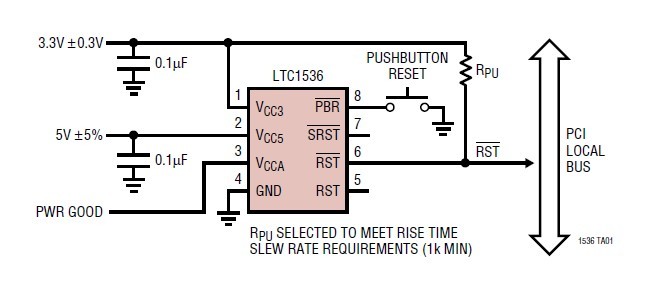

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LTC1536CS8 |
|
IC PREC TRPL SPPLY MONITOR 8SOIC |
Data Sheet |
|
|
||||||||||
|
LTC1536CS8#PBF |
|
IC PREC TRPL SPPLY MONITOR 8SOIC |
Data Sheet |
|
|
||||||||||
|
LTC1536CS8#TR |
|
IC MONITOR PREC TRPL SPPLY 8SOIC |
Data Sheet |
|
|
||||||||||
|
LTC1536CS8#TRPBF |
|
IC PREC TRPL SPPLY MONITOR 8SOIC |
Data Sheet |
|
|
||||||||||
