Product Summary

The lm2931mx-5.0 is a Low Dropout Regulator. The lm2931mx-5.0 positive voltage regulator features a very low quiescent current of 1mA or less when supplying 10mA loads. This unique characteristic and the extremely low input-output differential required for proper regulation (0.2V for output currents of 10mA) make the lm2931mx-5.0 the ideal regulator for standby power systems. Applications include memory standby circuits, CMOS and other low power processor power supplies as well as systems demanding as much as 100mA of output current.

Parametrics

lm2931mx-5.0 absolute maximum ratings: (1)Input Voltage: 26 V; (2)Operating Ambient Temperature: -40 to +85 ℃; (3)Maximum Junction Temperature: 125 ℃; (4)Storage Temperature Range: -65 to +150 ℃; (5)ESD Tolerance: 2000 V.

Features

lm2931mx-5.0 features: (1)Very Low Quiescent Current; (2)Output Current in Excess of 100 mA; (3)Input-output Differential Less than 0.6V; (4)Reverse Battery Protection; (5)60V Load Dump Protection; (6)-50V Reverse Transient Protection; (7)Short Circuit Protection; (8)Internal Thermal Overload Protection; (9)Mirror-image Insertion Protection.

Diagrams

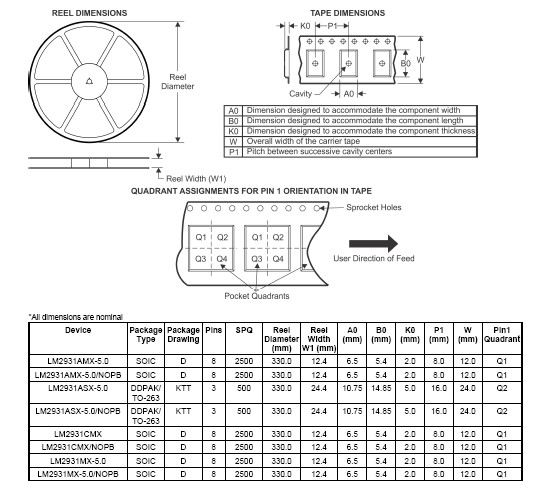

lm2931mx-5.0 dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LM2931MX-5.0
LM2931MX-5.0
National Semiconductor (TI)
Low Dropout (LDO) Regulators
Data Sheet
0-2500: $0.22
2500-5000: $0.20
5000-10000: $0.20
LM2931MX-5.0/NOPB
LM2931MX-5.0/NOPB
National Semiconductor (TI)
Low Dropout (LDO) Regulators
Data Sheet
0-1: $0.54
1-25: $0.42
25-100: $0.37
100-250: $0.35
