Product Summary
The IS61LV256-15T is a very high-speed, low power, 32,768-word by 8-bit static RAM. It is fabricated using ISSIs high-performance CMOS technology. This highly reliable process coupled with innovative circuit design techniques, yields access times as fast as 12 ns maximum.
Parametrics
IS61LV256-15T absolute maximum ratings: (1)Terminal Voltage with Respect to GND: –0.5 to +4.6 V; (2)Temperature Under Bias: –55 to +125 °C; (3)Storage Temperature: –65 to +150 °C; (4)Power Dissipation: 0.5 W; (5)DC Output Current (LOW): 20 mA.
Features
IS61LV256-15T features: (1)High-speed access time: 12, 15, 20, 25 ns; (2)Automatic power-down when chip is deselected; (3)CMOS low power operation: 345 mW (max.)operating;7 mW (max.)CMOS standby; (4)TTL compatible interface levels; (5)Single 3.3V power supply; (6)Fully static operation: no clock or refresh required; (7)Three-state outputs.

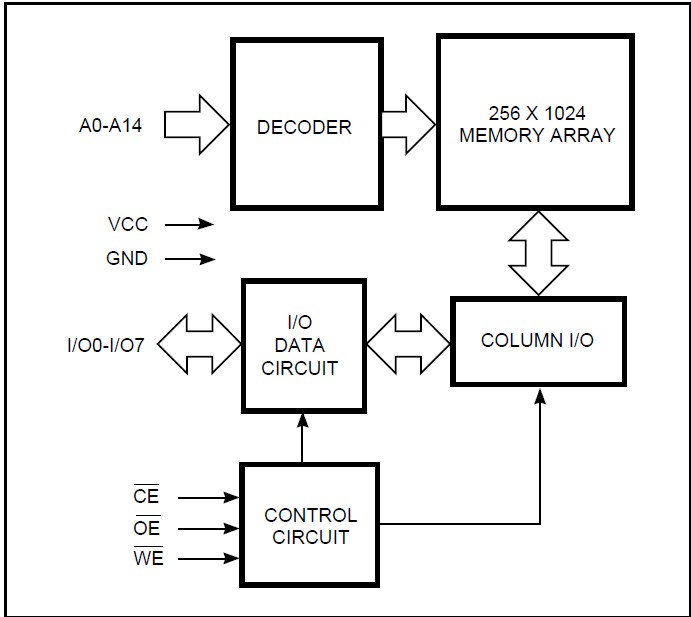

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 IS61LV256-15TL |
ISSI |
SRAM 256K 32Kx8 15ns 3.3v |
Data Sheet |
Negotiable |
|
||||
|
IS61LV256-15TL-TR |
ISSI |
SRAM 256K 32Kx8 15ns 3.3v |
Data Sheet |
Negotiable |
|
||||
