Product Summary

The hdmiulc6-4sc6 is a monolithic, application specific discrete device dedicated to ESD protection of the HDMI connection. It also offers the same high level of protection for IEEE 1394a and IEEE 1394b/c, USB 2.0, Ethernet links, and video lines. Applications are: (1)HDMI ports at 1.65 Gb/s and up to 3.2 Gb/s; (2)IEEE 1394a, b, or c up to 3.2 Gb/s; (3)USB 2.0 ports up to 480 Mb/s (Hi-Speed); (4)Ethernet port: 10/100/1000 Mb/s; (5)Video line protection.



Parametrics

hdmiulc6-4sc6 absolute maximum ratings: (1)VPP Peak pulse voltage: 25 kv; (2)Tstg Storage temperature range: -55 to +150 °C; (3)Tj Maximum junction temperature: 125 °C; (4)TL Lead solder temperature (10 seconds duration): 260 °C.

Features

hdmiulc6-4sc6 features: (1)4 line 15 kV ESD protection; (2)Protects VBUS when applicable; (3)Ultra high bandwidth - no inluence on signal rise and fall times - maximised number of signal harmonics; (4)Very low leakage current: 0.5 μA max.; (5)Fast response time compared with varistors; (6)SOT23-6L package; (7)RoHS compliant.

Diagrams

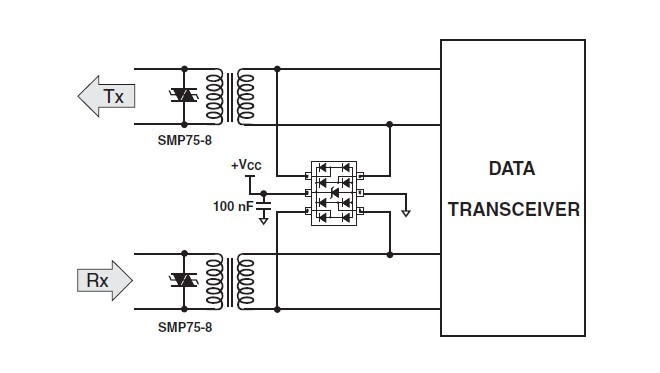

hdmiulc6-4sc6 pin connection
