Product Summary

The fdc37b807 is a complaint enhanced super I/O controller with keyboard/mouse wake-up. The fdc37b807 incorporates sophisticated power control circuitry (PCC) which includes support for keyboard, mouse, and modem ring wake-up events. The fdc37b807 does not require any externa filter components and is therefore easy to use and offers lower system costs and reduced board area.

Parametrics

fdc37b807 absolute maximum ratings: (1) Operating Temperature Range: 0 to +70°C; (2) Storage Temperature Range: -55 to +150°C; (3) Lead Temperature Range (soldering, 10 seconds) : +325°C; (4) Positive Voltage on any pin, with respect to Ground: Vcc +0.3V; (5) Negative Voltage on any pin, with respect to Ground: -0.3V; (6) Maximum Vcc: +7V.

Features

fdc37b807 features: (1) 5 Volt Operation; (2) ISA Plug-and-Play Compatible Register Set; (3) 2.88MB Super I/O Floppy Disk Controller; (4) Floppy Disk Available on Parallel Port Pins; (5) Enhanced Digital Data Separator; (6) Keyboard Controller; (7) Intelligent Auto Power Management.

Diagrams

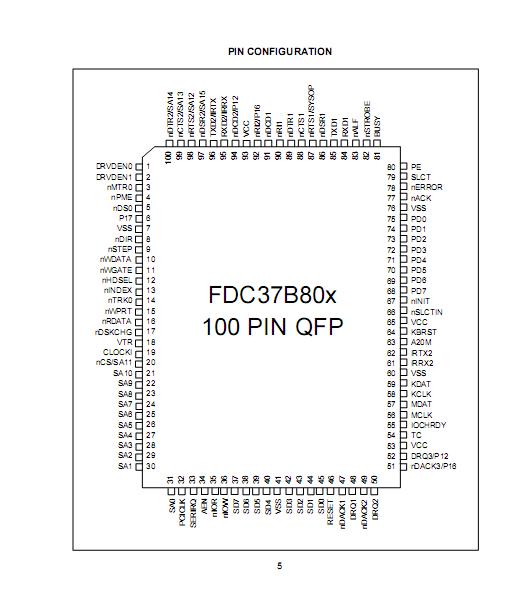

fdc37b807 Pin Configuration
