The DTC144EE is a digital transistor.

Parametrics

DTC144EE absolute maximum ratings: (1)Supply voltage: 50V; (2)Input voltage: -10~+40V; (3)Output current: 30A; (4)Power dissipation: 150mW; (5)Junction temperature: 150℃; (6)Storage temperature: -55~+150℃.

Features

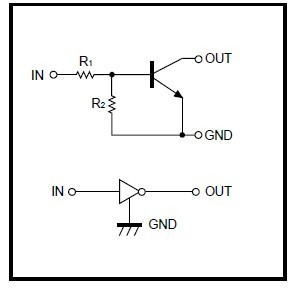

DTC144EE features: (1)Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see equivalent circuit); (2)The bias resistors consist of thin-film resistors with complete isolation to allow negative biasing of the input. They also have the advantage of almost completely eliminating parasitic effects; (3)Only the on/off conditions need to be set for operation, making device design easy.

Diagrams

DTC144EE pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
DTC144EE
DTC144EE
Other

Data Sheet
Negotiable
DTC144EEBTL
DTC144EEBTL

TRANS NPN 50V 100MA DGTL EMT3
Data Sheet
0-1: $0.25
1-10: $0.17
10-25: $0.11
25-100: $0.08
100-250: $0.06
250-500: $0.04
500-1000: $0.03
DTC144EET1G
DTC144EET1G
ON Semiconductor
Transistors Switching (Resistor Biased) 100mA 50V BRT NPN
Data Sheet
0-1: $0.11
1-25: $0.09
25-100: $0.07
100-500: $0.03
DTC144EETL
DTC144EETL
ROHM Semiconductor
Transistors Switching (Resistor Biased) DIGITAL NPN 50V 100MA EMD3
Data Sheet
0-1: $0.26
1-25: $0.14
25-100: $0.09
100-500: $0.05
DTC144EE-TP
DTC144EE-TP
Micro Commercial Components (MCC)
Transistors Switching (Resistor Biased) NPN 47KOhms 250MHz
Data Sheet
0-1: $0.27
1-10: $0.18
10-100: $0.09
100-250: $0.06
DTC144EET1
DTC144EET1
ON Semiconductor
Transistors Switching (Resistor Biased) 100mA 50V BRT NPN
Data Sheet
Negotiable
