Product Summary

The BSR17A is an NPN switching transistor. application is switching and linear amplification.

Parametrics

BSR17A absolute maximum ratings: (1)Collector-base voltage open emitter: 60 V; (2)Collector-emitter voltage open base: 40 V; (3)Emitter-base voltage open collector: 6 V; (4)Collector current (DC): 100 mA; (5)Peak collector current: 200 mA; (6)Peak base current: 100 mA; (7)Total power dissipation: 250 mW; (8)Storage temperature: -65 to +150 °C; (9)Junction temperature: 150 °C; (10)Operating ambient temperature: -65 to +150 °C.

Features

BSR17A features: (1)Low current (max. 100 mA); (2)Low voltage (max. 40 V).

Diagrams

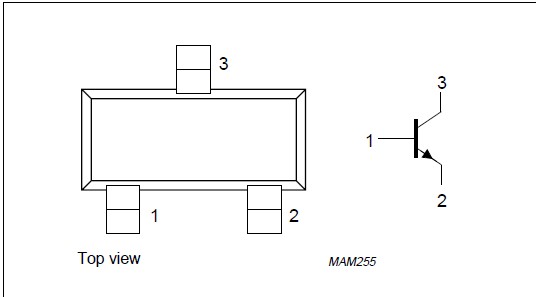

BSR17A pin connection
