Product Summary
The BR9020F-WE2 is a 2k bit EEPROM for direct connection to serial ports. The BR9020F-WE2 can be connected directly to a serial port and can be erased and written electrically. Writing and reading is performed in word units, using four types of operation commands. Communication occurs through CS, SK, DI, and DO pins, WC pin control is used to initiate a write disabled state, enabling the BR9020F-WE2 to be used as one-time ROMs. During writing, operation is checked via the internal status check.
Parametrics
BR9020F-WE2 absolute maximum ratings: (1)Applied voltage:-0.3V to +7.0V; (2)Power dissipation:350mW; (3)Storage temperature:-65 to +125℃; (4)Operation temperature:-40 to +85℃; (5)Input voltage:-0.3V to VCC+0.3V.
Features
BR9020F-WE2 features: (1)128 words × 16 bits; (2)Single power supply operation; (3)Serial data input and output; (4)Automatic erase-before-write; (5)Low current consumption: 1.5mA (max.) active current: 3V, 2μA(max.) standby current: 3V; (6)Noise filter built into SK pin; (7)Compact DIP8, SOP8, SSOP-B8 packages (SSOP-B8 is available only with BR9010); (8)100,000 ERASE / WRITE cycles; (9)10 years Data Retention; (10)Easily connects to serial port.

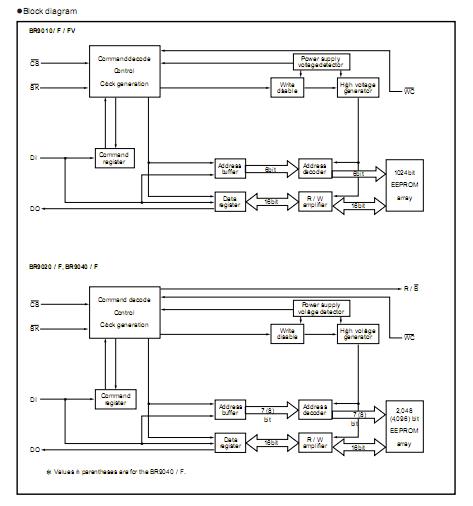

Diagrams
