Product Summary
The BA25BC0FP-E2 is a low-saturation regulator with an output current of 1.0 A and an output voltage accuracy of ±2%. A broad output voltage range is offered, from 1.5V to 10V, and built-in overcurrent protection and thermal shutdown (TSD) circuits prevent damage due to short-circuiting and overloading, respectively. Application is all electronic devices that use microcontrollers and logic circuits.
Parametrics
BA25BC0FP-E2 absolute maximum ratings: (1)Power supply voltage, VCC: 18 V; (2)Power dissipation, PD: 2000 mW; (3)Operating temperature range, Topr: -40 to +105 °C; (4)Ambient storage temperature, Tstg: -55 to +150 °C; (5)Maximum junction temperature, Tjmax: 150 °C; (6)Input power supply voltage, VCC: 3.0 to 16.0 V; (7)Input power supply voltage, VCC: Vo+1.0 to 16.0 V; (8)Output current, IO: 1 A; (9)Variable output voltage setting value, VO: 1.5 to 12 V.
Features
BA25BC0FP-E2 features: (1)Input power supply voltage: 16.0V(Max.); (2)Output voltage: Variable; Fixed; (3)Output current: 1A(Max.); (4)Shutdown current: 0μA(Typ.); (5)Operating temperature range: -40℃ to +105℃.

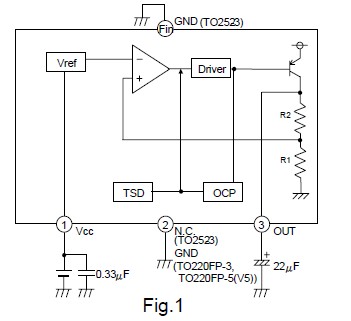

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 BA25BC0FP-E2 |
ROHM Semiconductor |
Low Dropout (LDO) Regulators IC LDO 2.5V 1A |
Data Sheet |
|
|
||||||||||||
